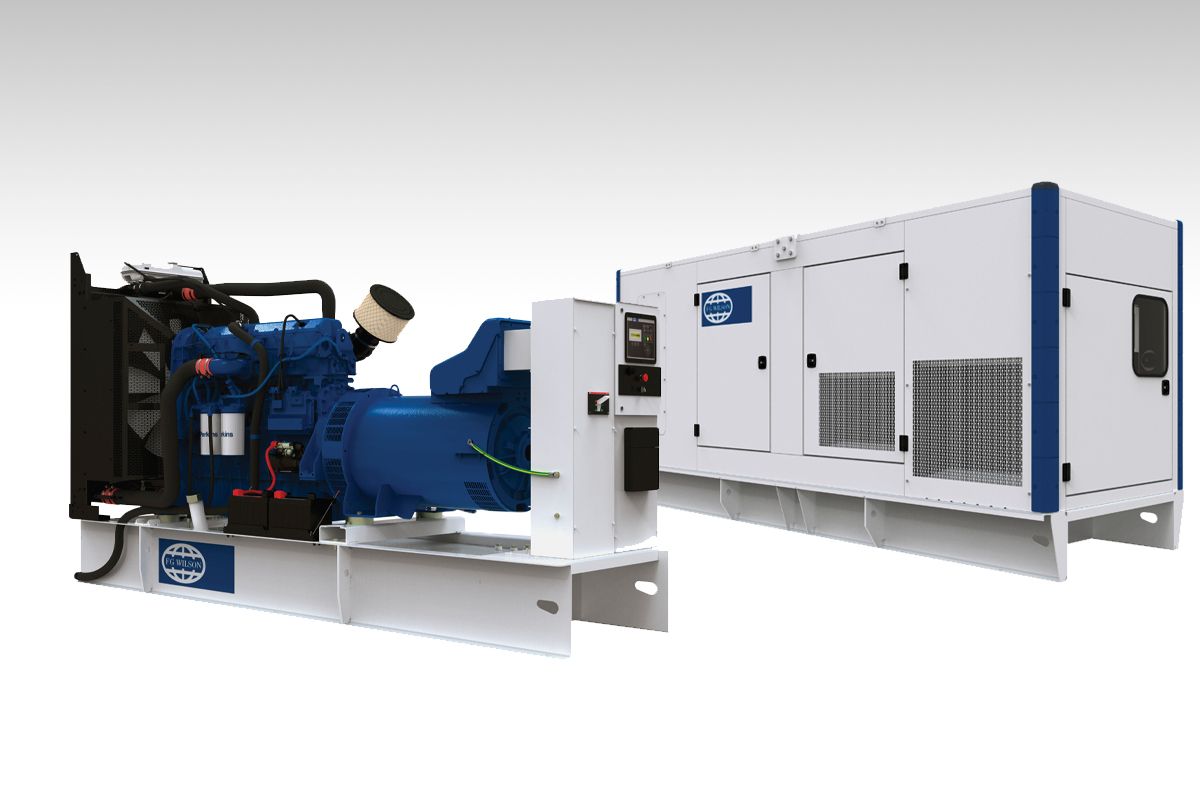

Power Diesel Generator

350 - 938 kVA


The new 350 - 938 kVA industry leading power range is the result of a continued focus on performance, durability and serviceability combined with the most advanced production methods to deliver power you can trust.

Product Feature

The 350 - 938 kVA range from FG Wilson is designed by our expert engineers to deliver power you can trust. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. Expert Design� Trusted Power

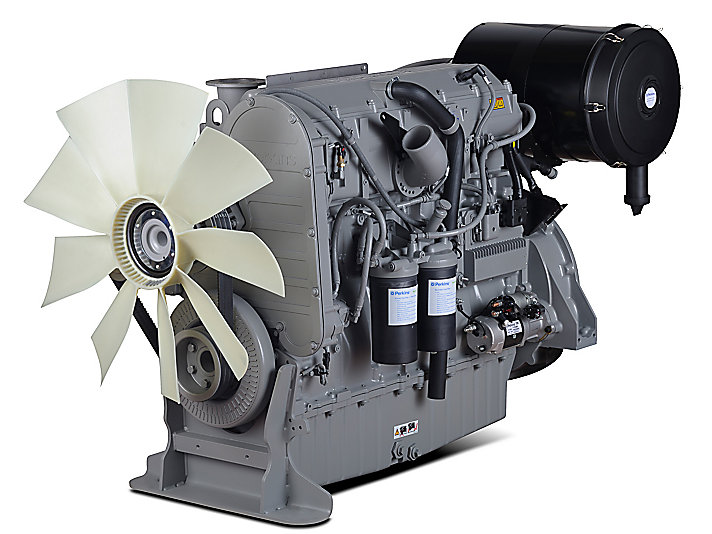

The Perkins 2000 Series offers excellent performance from the well-proven 6 cylinder 13, 15 & 18 litre in-line diesel engines. Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability. Its premium design ensures economic and durable operation, low emissions and advanced performance and reliability.

Benefiting from a choice of leading alternators, the range incorporates the FG Wilson alternator as standard whilst offering a Leroy Somer optional upgrade.

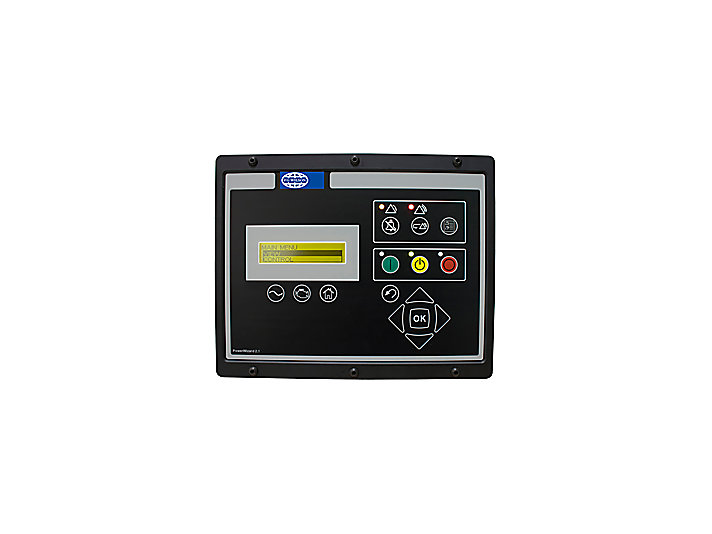

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

Fully prototype tested with certified torsional vibration analysis available

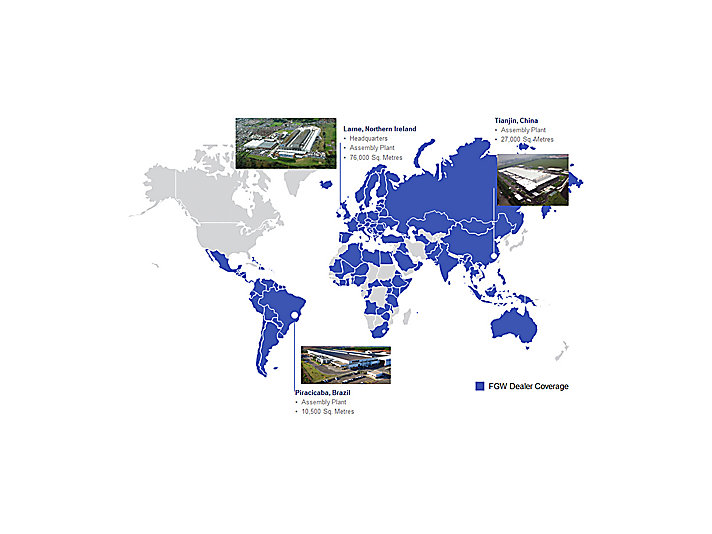

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

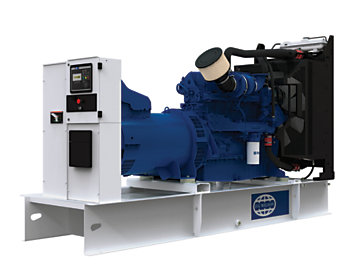

Product Specifications For P780-1

Generator Set Specifications Engine Specifications
Minimum Rating

706 kVA / 565 kW

Maximum Rating

780 kVA / 624 kW

Emissions/Fuel Strategy

Fuel Optimised

50 Hz Prime

706 kVA / 565 kW

Engine Model

Perkins® 2806A-E18TTAG4


145 mm (5.7 in)

50 Hz Standby

780 kVA / 624 kW

60 Hz Prime

60 Hz Standby


50 Hz


183.0mm (7.2 in)

Governor Type



1500 RPM


230-400 Volts

50 Hz Prime Rating

1500 RPM

60 Hz Prime Rating

230-400 Volts


18.1l (1104.5 cu. in)

Compression Ratio


50 Hz Standby Rating

1500 RPM

60 Hz Standby Rating

230-400 Volts


  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown
  • Engine mounted battery charging alternator


  • Package mounted radiator
  • Radiator fan and charging alternator guards
  • Coolant Drain Valve
  • Cooling System filled with Coolant mix


  • Exhaust flange outlet
  • Exhaust bellows and gasket


  • 8 Hr Fuel Tank
  • BSP Fuel Sockets


  • FG Wilson
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • PowerWizard 2.1+


  • Robust steel constructed base frame
  • Base frame drag and lift points
  • Captive linear vibration isolators between base and engine-generator
  • Battery Tray and Cables


  • Industrial, Residential, Critical Silencers


  • Quadrature Droop Kit (AR6)
  • Anti-Condensation Heater and Panel Circuitry
  • AREP / PMG excitation
  • AVR Upgrades
  • Three phase sensing
  • Oversize Alternator
  • Coastal ingress protection alternator
  • Leroy Somer

Control Panels

  • PowerWizard 2.1
  • easYgen-2500


  • Heavy duty dry battery
  • Battery charger with auto boost


  • Upgrade to Standard Set for "CE" Certification
  • EEC Declaration of Conformity
  • Dual wall base tank (8 hrs)

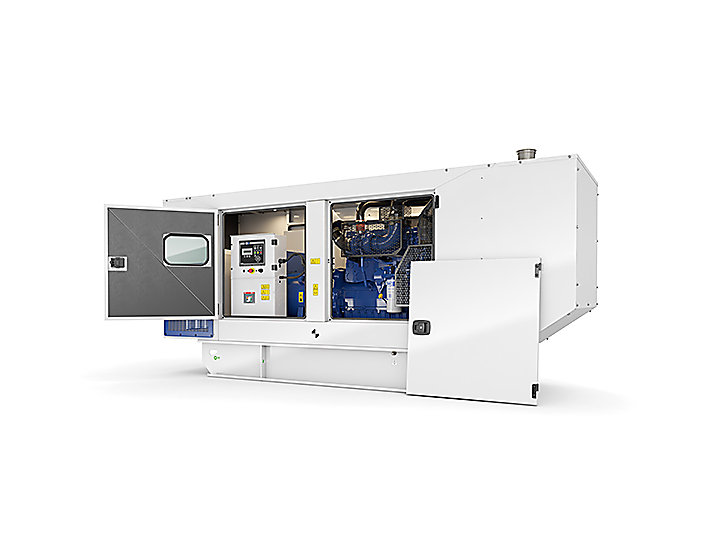

  • Sound attenuated or High ambient enclosures - Coming Soon
  • Battery isolator switch


  • Compliance to European Community Directive 2000/14/EC

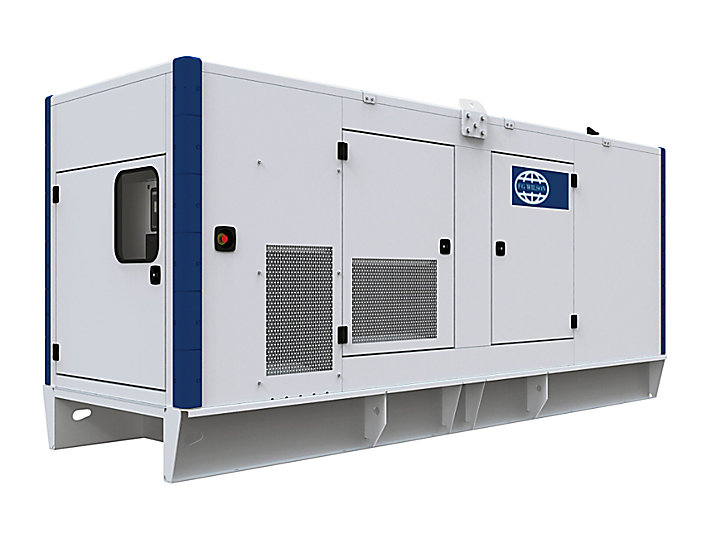

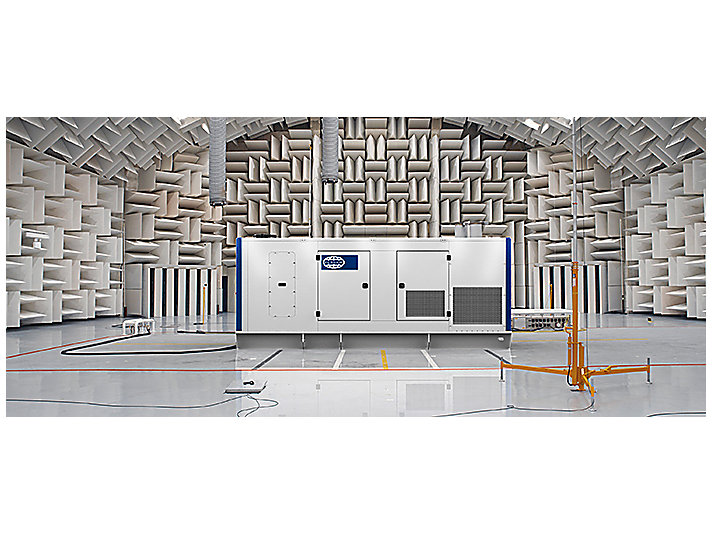

  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • 50�C High ambient capability available
  • Robust and highly corrosion resistant construction
