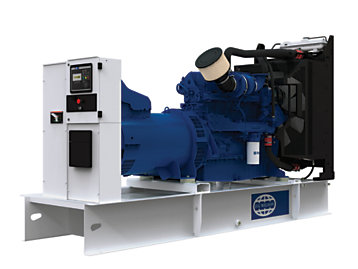

Power Diesel Generator

350 - 938 kVA

P563-3

The new 350 - 750 kVA industry leading power range is the result of a continued focus on performance, durability and serviceability combined with the most advanced production methods to deliver power you can trust.

Product Feature

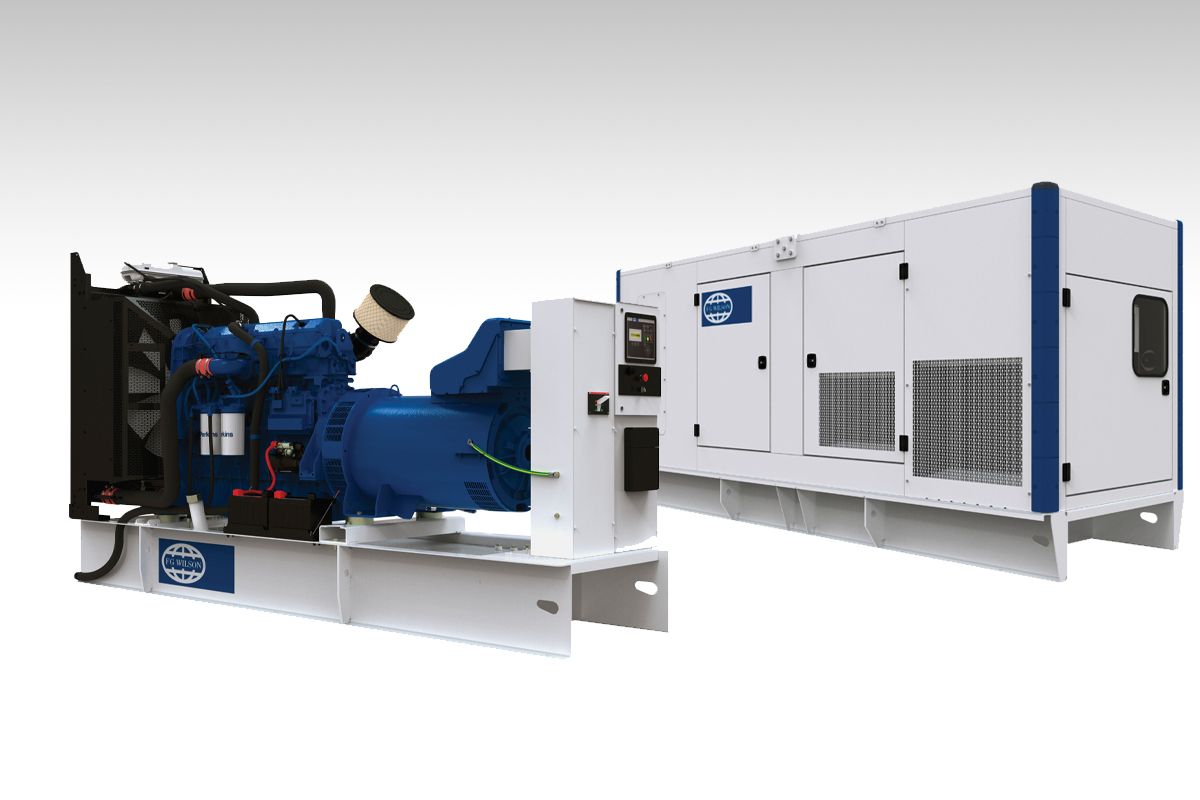

The 350 - 938 kVA range from FG Wilson is designed by our expert engineers to deliver power you can trust. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. Expert Design... Trusted Power

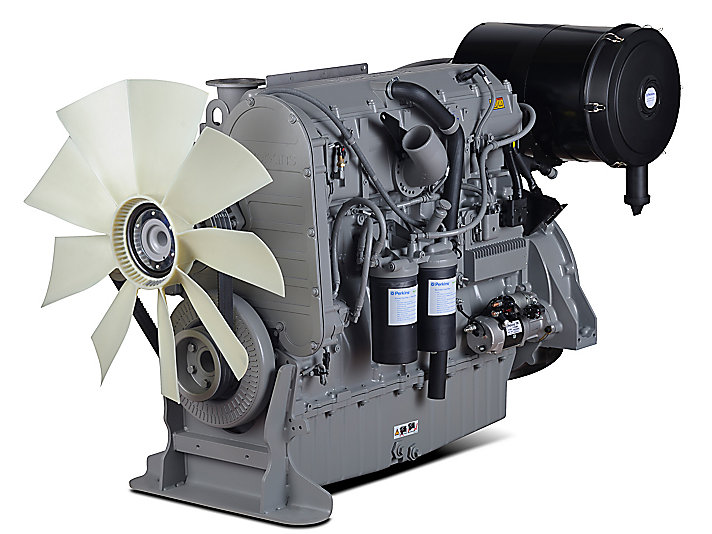

The Perkins 2000 Series offers excellent performance from the well-proven 6 cylinder 13, 15 & 18 litre in-line diesel engines. Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability. Its premium design ensures economic and durable operation, low emissions and advanced performance and reliability.

Benefiting from a choice of FG Wilson branded and Leroy Somer alternators across the range offering the excellent performance and reliability you expect from FG Wilson.

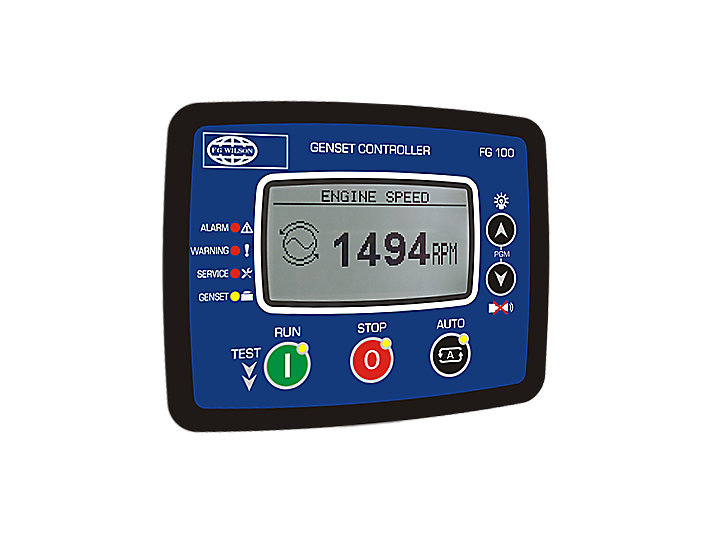

The FG Wilson FG100 range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our FG100 range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Product Specifications For P563-3

Generator Set Specifications Engine Specifications
Minimum Rating

513 kVA / 419 kW

Maximum Rating

563 kVA / 450 kW

Emissions/Fuel Strategy

Fuel Optimised

50 Hz Prime

Engine Model

Perkins® 2506A-E15TAG3

Bore

137 mm (5.4 in)

50 Hz Standby

60 Hz Prime

563 kVA / 450 kW

60 Hz Standby

563 kVA / 450 kW

Frequency

60 Hz

Stroke

171.0mm (6.7 in)

Governor Type

Electronic

Speed

1800 RPM

Voltage

127-480 Volts

50 Hz Prime Rating

1800 RPM

60 Hz Prime Rating

127-480 Volts

Displacement

15.2l (927.6 cu. in)

Compression Ratio

16.0:1

50 Hz Standby Rating

1800 RPM

60 Hz Standby Rating

127-480 Volts

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown
  • Engine mounted battery charging alternator

Cooling

  • Package mounted radiator
  • Radiator fan and charging alternator guards
  • Coolant Drain Valve
  • Cooling System filled with Coolant mix

Exhaust

  • Exhaust flange outlet
  • Exhaust bellows and gasket

Fuel

  • 8 Hr Fuel Tank
  • BSP Fuel Sockets

Alternator

  • WEG
  • SHUNT Excitation
  • IP21 Protection

Control Panel

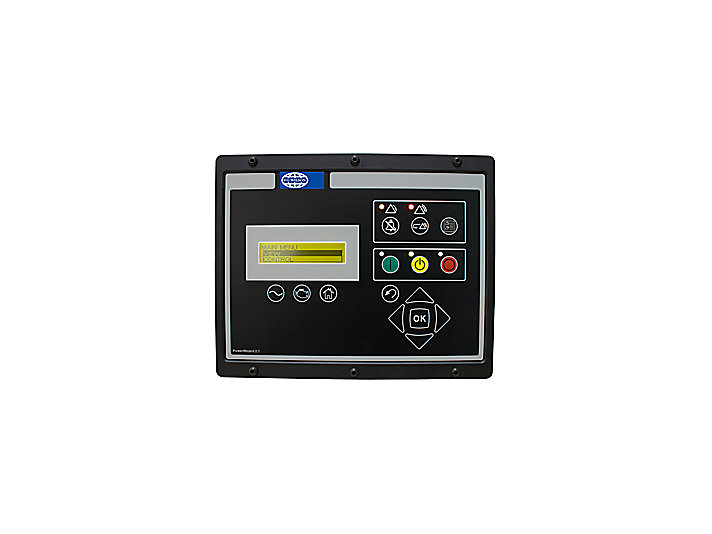

  • PowerWizard 1.1+

Mounting

  • Robust steel constructed base frame
  • Base frame drag and lift points
  • Captive linear vibration isolators between base and engine-generator
  • Battery Tray and Cables

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Quadrature Droop Kit (AR6)
  • Anti-Condensation Heater and Panel Circuitry (AH1)
  • AREP / PMG excitation
  • AVR Upgrades
  • Three phase sensing
  • Oversize Alternator
  • Coastal ingress protection alternator
  • Leroy Somer

Control Panels

  • PowerWizard 2.1
  • easYgen-2500

Starting/Charging

  • Heavy duty dry battery
  • Battery charger with auto boost

General

  • Upgrade to Standard Set for "CE" Certification
  • EEC Declaration of Conformity
  • Dual Wall base tank (8 hrs)
  • Sound attenuated or High ambient enclosures
  • Battery isolator switch

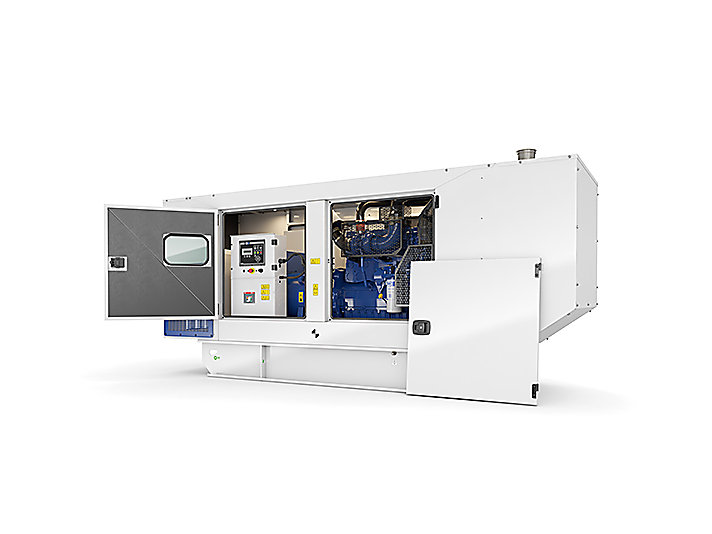

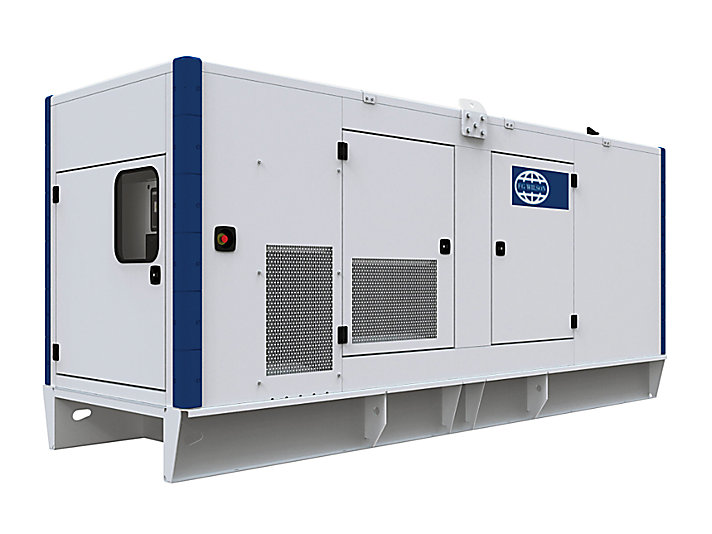

Enclosure

  • Compliance to European Community Directive 2000/14/EC

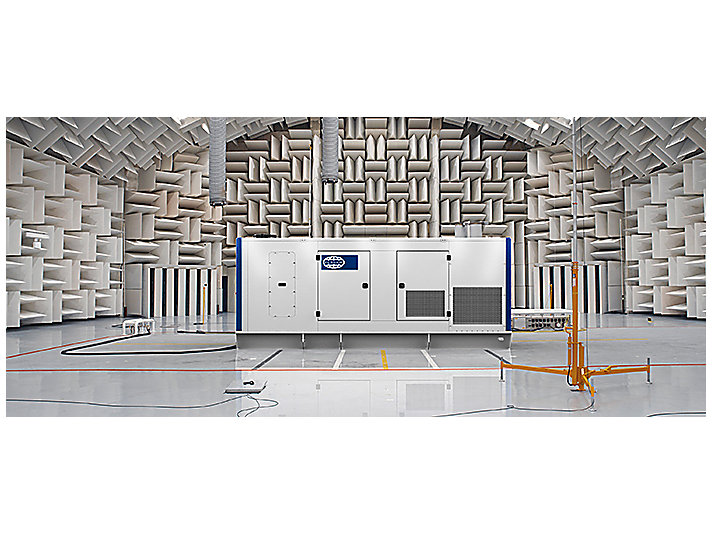

  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • 50�C High ambient capability available
  • Robust and highly corrosion resistant construction
