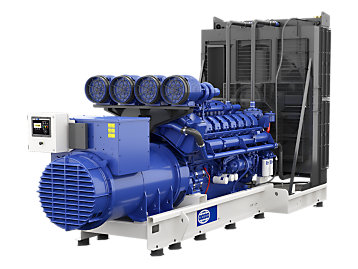

Power Diesel Generator

730 - 2500 kVA

P2000-3

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Product Feature

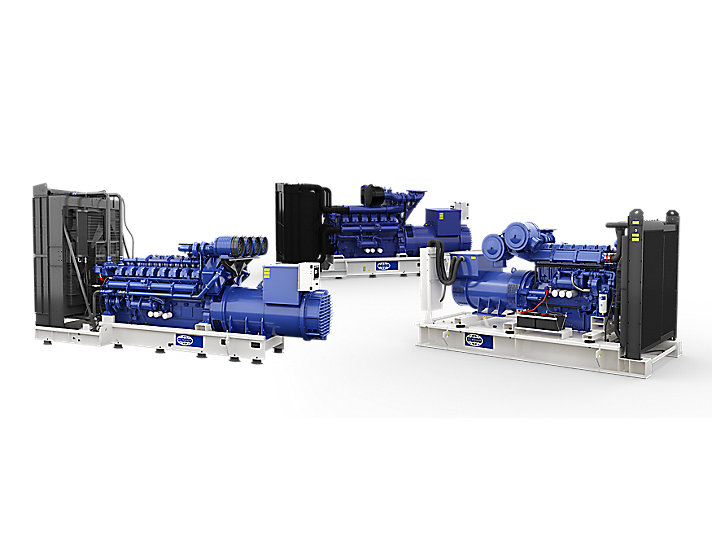

Our Large Product Range of generator set models is available from 800 - 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need.

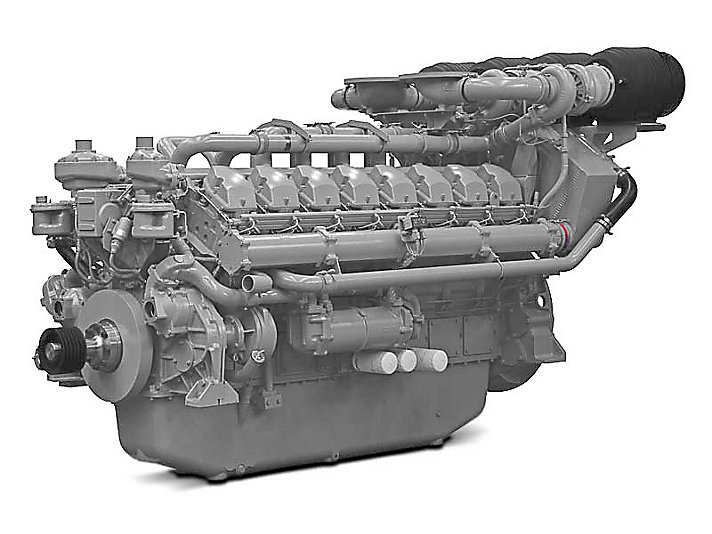

The 16 cylinder Perkins 4016TRG range gives you the versatility and heavy duty performance you need in today's power generation market. The 4016TRG range engines have exceptional power-to-weight ratio and compact design, making them easy to transport and install. The 4016-61TRG is quad turbocharged and air-to-water chargecooled

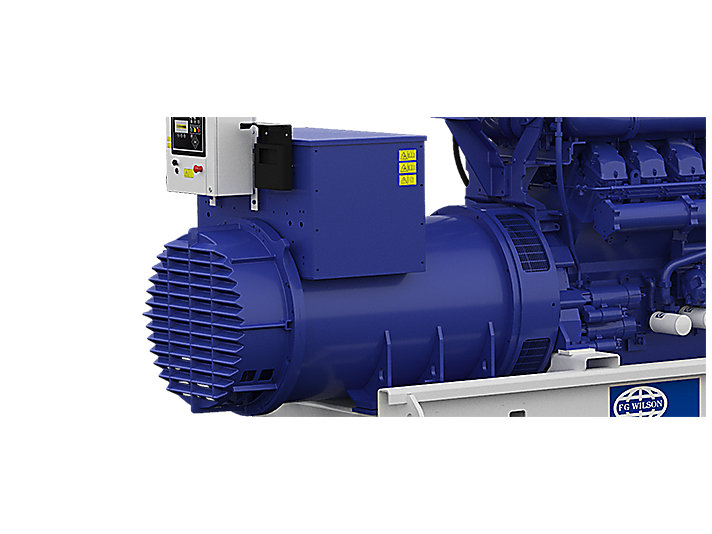

Supported by the Leroy Somer brand with their 100 years expertise in the alternator business, known worldwide for providing industry leading power generation and solutions, offering longlife products with low maintenance

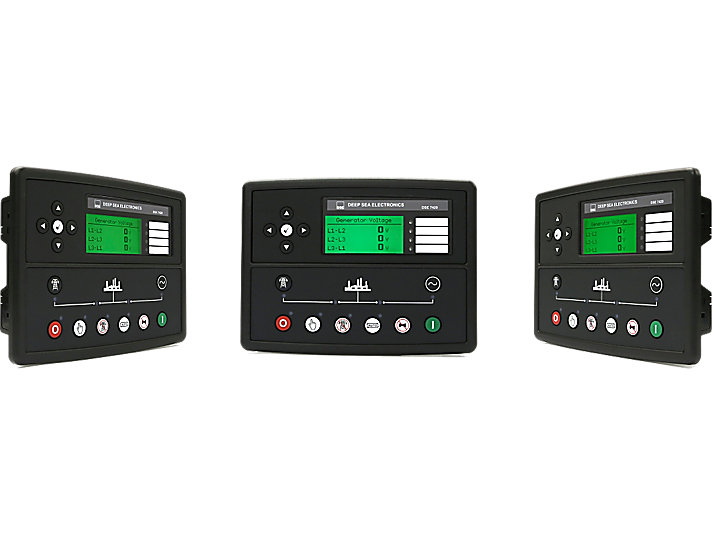

The DSE7410 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. Deep Sea control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Product Specifications For P2000-3

Generator Set Specifications Engine Specifications
Minimum Rating

1850 kVA / 1480 kW

Maximum Rating

2000 kVA / 1600 kW

Emissions/Fuel Strategy

Fuel Optimised

50 Hz Prime

1850 kVA / 1480 kW

Engine Model

Perkins® 4016-61TRG1

Bore

160 mm (6.3 in)

50 Hz Standby

2000 kVA / 1600 kW

60 Hz Prime

60 Hz Standby

Frequency

50 Hz

Stroke

190 mm (7.5 in)

Governor Type

Electronic

Speed

1500 RPM

Voltage

220-415 Volts

50 Hz Prime Rating

1500 RPM

60 Hz Prime Rating

220-415 Volts

Displacement

61.1l (3730 cu. in)

Compression Ratio

13.0:1

50 Hz Standby Rating

1500 RPM

60 Hz Standby Rating

220-415 Volts

Engine

  • Air Cleaner
  • Engine filled with lubrication oil
  • Low Coolant Temperature Shutdown
  • Perkins 4000, Series 6, 8, 12 and 16 cylinder engine range
  • Electronic governor
  • Engine mounted fuel/water separator
  • Lube drain valve (910 kVA to 2500 kVA)

Cooling

  • Package mounted radiator
  • Coolant Drain Valve
  • Engine mounted battery charging alternator
  • Cooling System filled with Coolant mix
  • Charge air cooled (excluding TWGs)

Exhaust

  • Industrial silencer

Fuel

  • Fuel Cooler

Alternator

  • Leroy Somer
  • AREP Excitation
  • IP23 Protection

Control Panel

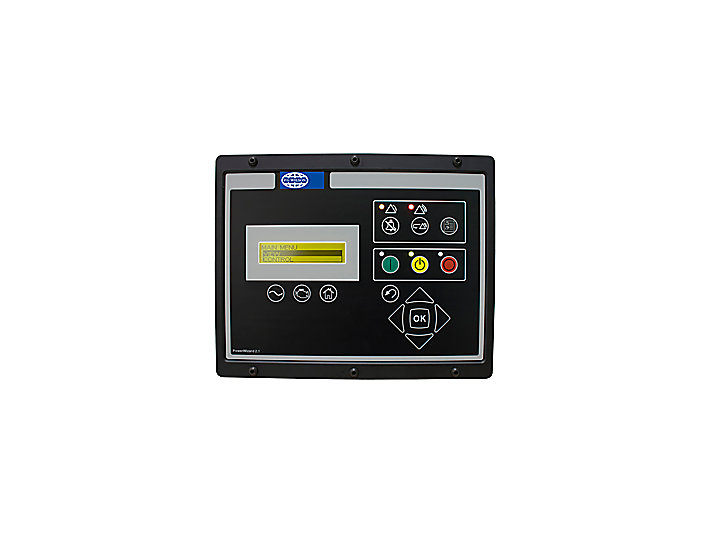

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Lifting points on base frame

Exhaust

  • Industrial, Residential, Critical Silencers
  • Catalytic converters
  • Heat Exhangers
  • Special spark arrestor silencers/certification

Alternator

  • Quadrature Droop Kit (AR6)
  • Anti-Condensation Heater and Panel Circuitry (AH1)
  • Increased alternator ingress protection
  • HV alternators

Control Panels

  • PowerWizard 2.1
  • easYgen-2500, 3200, 3500
  • CompAp
  • Deep Sea
  • Customer tailored PLC System
  • Remote monitoring
  • Increased Control Panel Ingress Protection
  • Stand alone ATI transfer panel

Starting/Charging

  • Lead Acid battery (Dry)
  • Dual and air starting systems

General

  • Upgrade to Standard Set for "CE" Certification
  • Sound attenuated enclosures
  • Spring, Seismic anti-vibration mounts
  • Customer witness test
  • Remote cooling
  • 50 degree C radiator and package
  • Coolant heater
  • 4-Pole circuit breaker
  • Motorised circuit breaker
  • LV and HV switchgear

Fuel

  • Bi-fuel options (TWG and TRG only)
  • Fuel transfer systems (730 - 900 kVA)
  • Integral metal fuel tank (730 - 900 kVA)
