6.8 - 25 kVA
P9.5-1

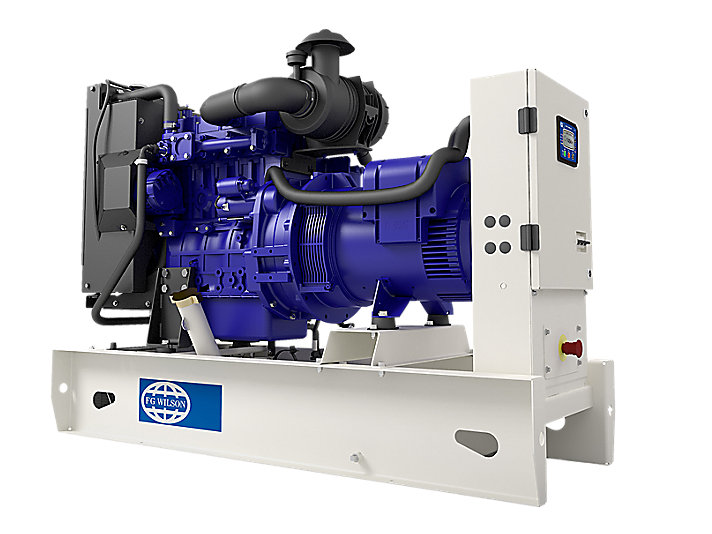

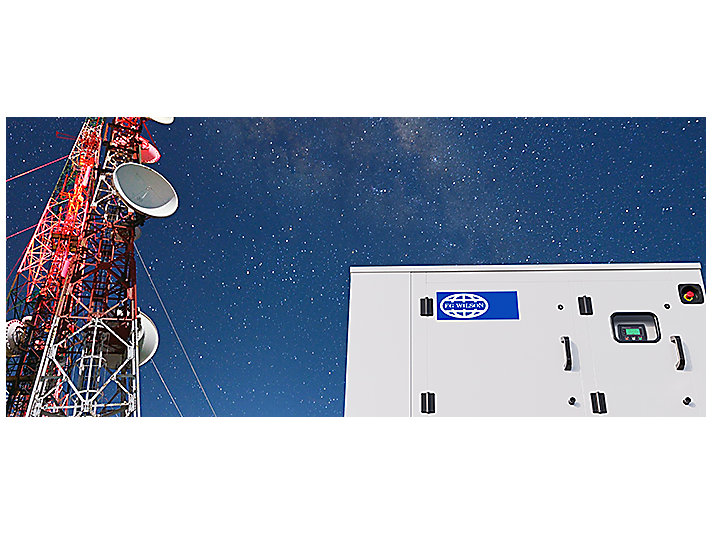

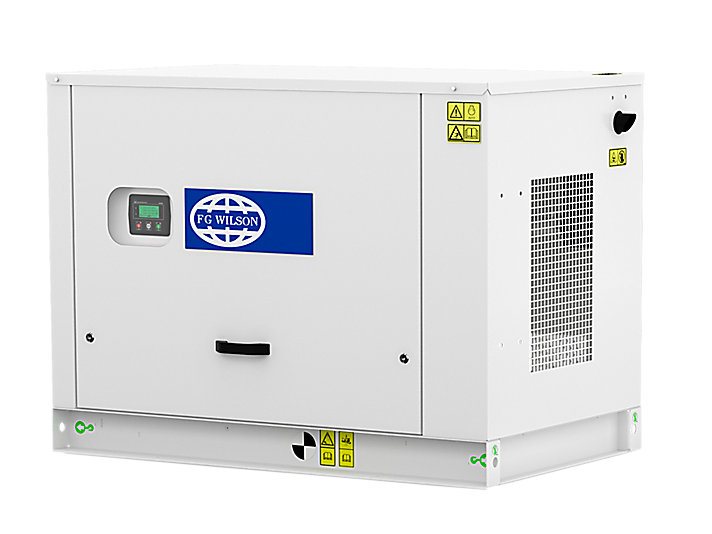

The 6.8 - 25 kVA range of generator sets is designed to power your every need. Suitable for use in diverse applications including construction, residential, retail and telecommunications, this range has been redesigned for optimum performance in some of the harshest and most remote environments. Available with a metal or polymer enclosure offering, this range is designed to withstand the test of time.
Product Benefits
Up To
2000L

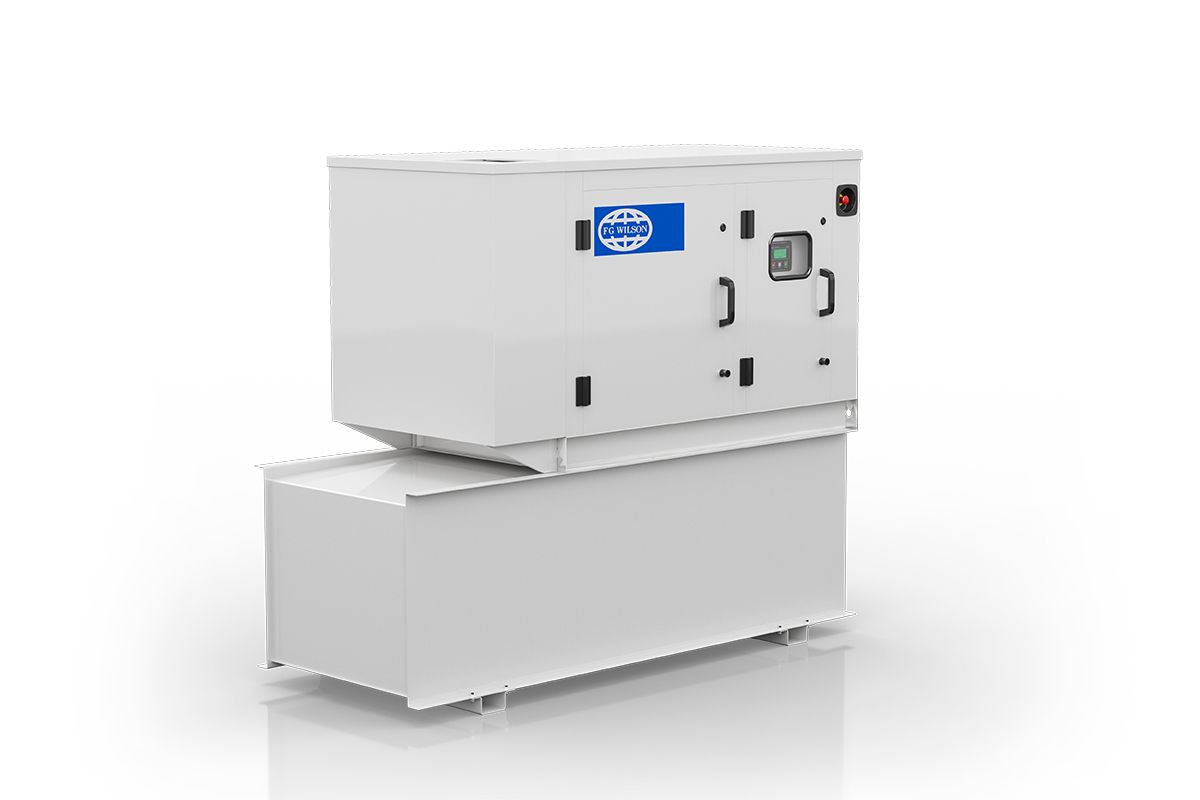

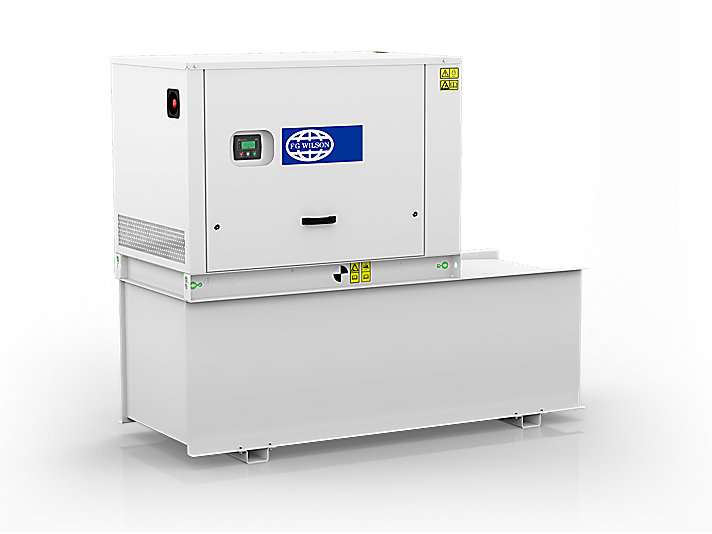

Extended Capacity Fuel Tanks
Larger fuel tanks allow for longer periods of time between refueling
As Low As
57 dBA
Super silent enclosures

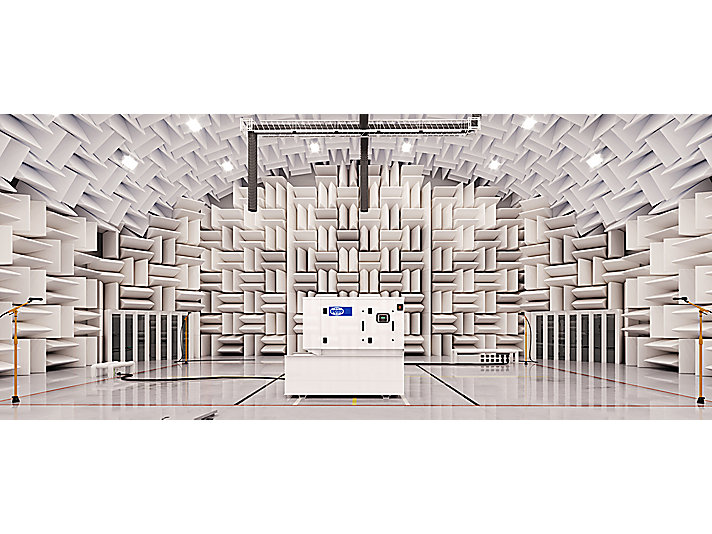

Super Silent enclosures offer excellent sound attenuation with sound as low as 57 dBA at 7m
Stay In Control
Telematics Ready
Telematics Ready
Telematics availability allows for remote access to genset controls ensuring your always in control were ever you are
Product Feature
The 6.8 - 25 kVA range of generator sets is designed to power your every need. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications including construction, residential, retail and telecommunications. The contemporary design of the polymer enclosure option redefines durability in the marketplace and further enhances this range alongside the more traditional metal enclosure. For a life without interruptions, trust FG Wilson.

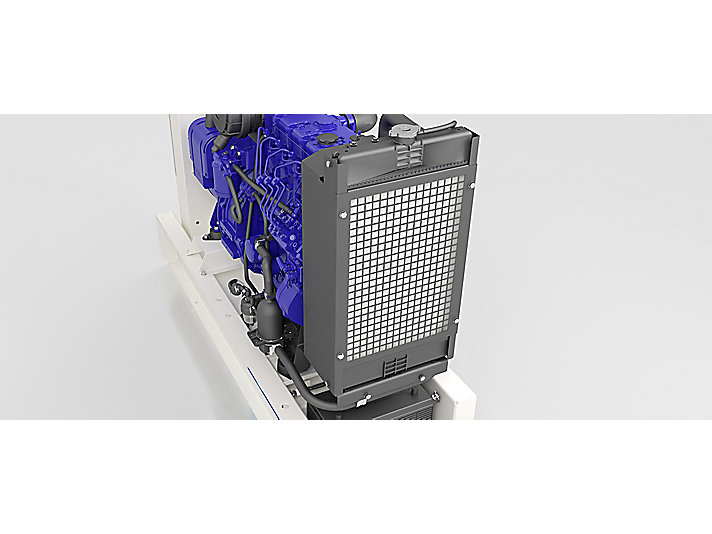

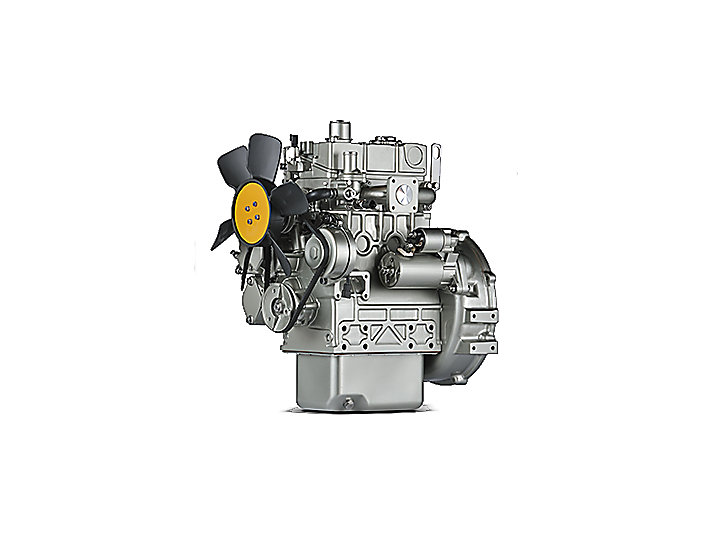

The Perkins 400 Series engines offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed and proven in the field in a wide variety of applications. Not only are they reliable but also offer low cost of ownership and excellent fuel economy.

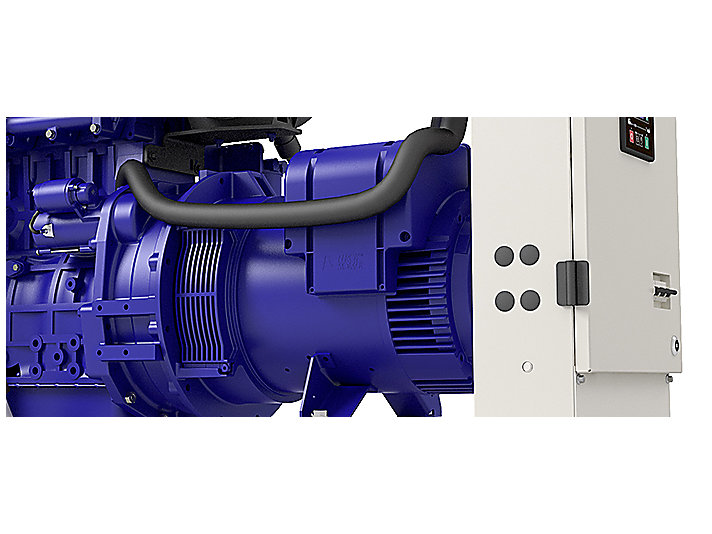

Benefiting from a choice of leading alternators, the FG Wilson FGL and Leroy Somer brand alternators are known worldwide for providing power generation expertise and solutions offering longlife products with low maintenance. Offering excellent performance and motor starting capacility they have been designed specifically to suit the FG Wilson generator set

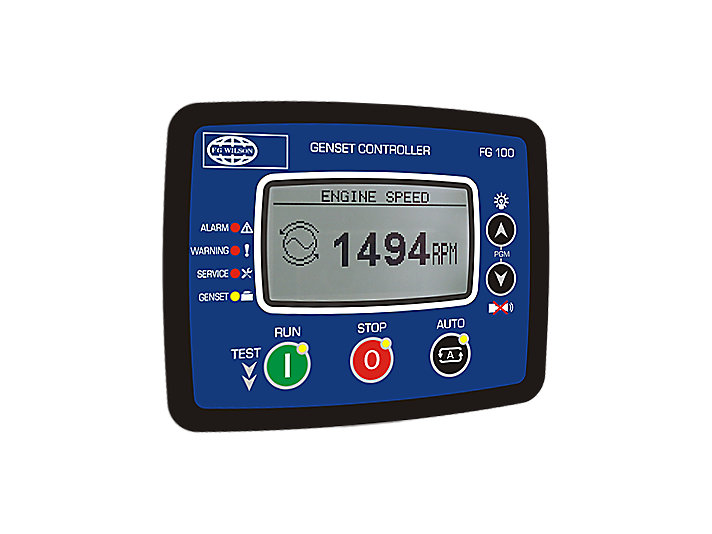

The FG100 offers simple, intuitive menu navigation and control of your generator set operations, key features such as remote monitoring allow you to control your generator set with ease. Key information is displayed via the LCD display using universally recognised symbols, eliminating the need for complex instructions or language settings. Rainbow SCADA PC software allows for remote ol of your generator set.
Fully prototype tested with certified torsional vibration analysis available
FG Wilson manufactures product in the following locations: Northern Ireland - Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Designed to operate in ambient temperatures up to 55oC
Product Specifications For P9.5-1
| Generator Set Specifications | Engine Specifications | ||||
|---|---|---|---|---|---|
|
Minimum Rating 8.5 kVA / 6.8 kW |
Maximum Rating 9.5 kVA / 7.6 kW |
Emissions/Fuel Strategy Fuel Optimised |
50 Hz Prime 8.5 kVA / 6.8 kW |
Engine Model Perkins® 403A-11G1 |
Bore 77 mm (3 in) |
|
50 Hz Standby 9.5 kVA / 7.6 kW |
60 Hz Prime - / - |
60 Hz Standby — |
Frequency 50 Hz |
Stroke 81 mm (3.2 in) |
Governor Type Mechanical |
|
Speed 1500 RPM |
Voltage 220-415 Volts |
50 Hz Prime Rating 1500 RPM |
60 Hz Prime Rating 220-415 Volts |
Displacement 1.1l (69 cu. in) |
Compression Ratio 23:01 |
|
50 Hz Standby Rating 1500 RPM |
60 Hz Standby Rating 220-415 Volts |
||||
Engine
|
Cooling
|
Exhaust
|
Fuel
|
Alternator
|
Control Panel
|
Mounting
|
Exhaust
|
Alternator
|
Control Panels
|
General
|
Starting/Charging
|
Enclosure
|
