225 - 375 kVA
P313-5
225 to 330 kVA Diesel Generator Sets. As your power needs increase, this cost effective generator set range delivers a powerful performance with world class power density. Compact and durable, they can easily be manoeuvred into position, whatever the installation conditions.
Product Benefits
Product Feature
The 225 – 375 kVA Diesel Generator Sets. As your power needs increase, this cost effective generator set range delivers a powerful performance with world class power density. Compact and durable, they can easily be manoeuvred into position, whatever the installation conditions the225 – 375kVA range of generator sets is designed to power your every need. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. For a life without interruptions, trust FG Wilson.

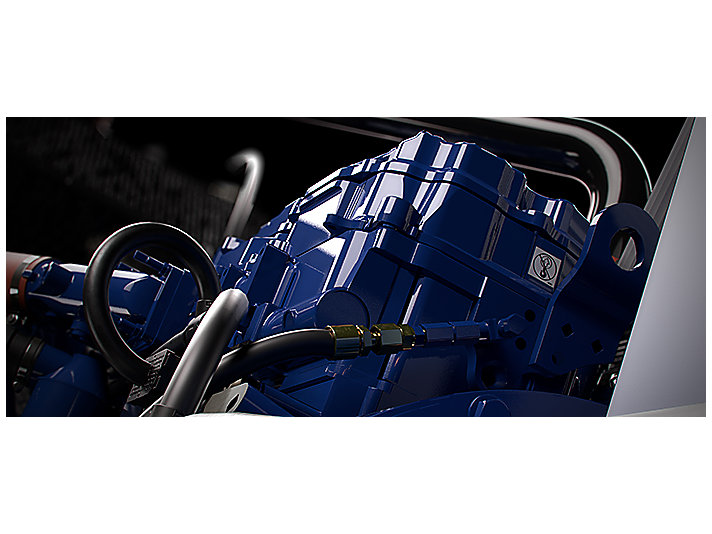

The Perkins 1506 Series engine offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed to be reliable and to offer low cost of ownership in the wide variety of markets they serve.

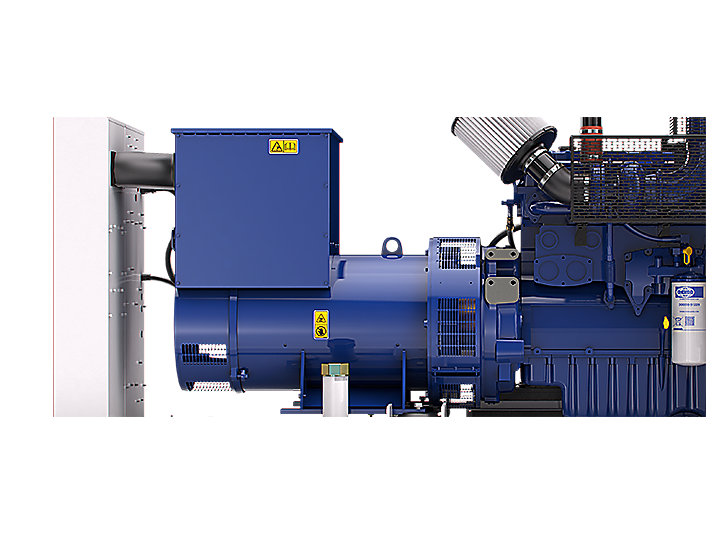

Benefiting from a choice of leading alternators, the range incorporates a FG Wilson & Marelli alternator as standard whilst offering a Leroy Somer optional upgrade.

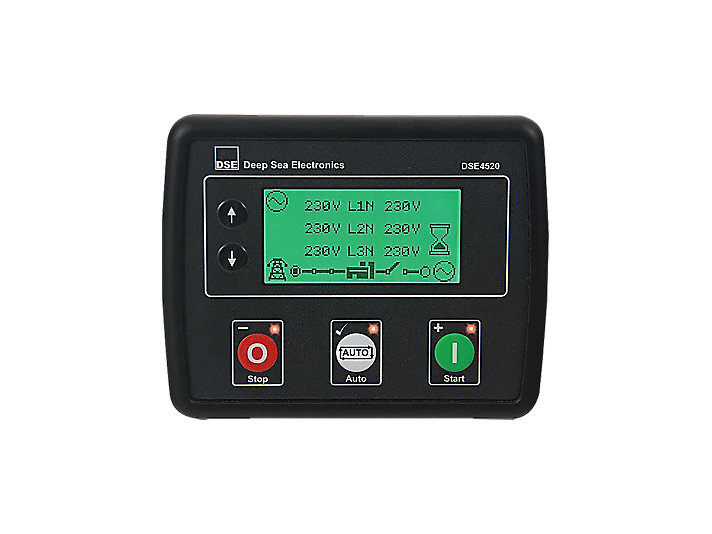

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.
Fully prototype tested with certified torsional vibration analysis available
FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Product Specifications For P313-5
| Generator Set Specifications | Engine Specifications | ||||
|---|---|---|---|---|---|
|
Minimum Rating 281 kVA / 225 kW |
Maximum Rating 313 kVA / 250 kW |
Emissions/Fuel Strategy Fuel Optimised |
50 Hz Prime |
Engine Model Perkins® 1506A-E88TAG3 |
Bore 112 mm (4.4 in) |
|
50 Hz Standby |
60 Hz Prime 281 kVA / 225 kW |
60 Hz Standby 313 kVA / 250 kW |
Frequency 60 Hz |
Stroke 149 mm (5.9 in) |
Governor Type Electronic |
|
Speed 1800 RPM |
Voltage 127-480 Volts |
50 Hz Prime Rating 1800 RPM |
60 Hz Prime Rating 127-480 Volts |
Displacement 8.8l (537 cu. in) |
Compression Ratio 16.1:1 |
|
50 Hz Standby Rating 1800 RPM |
60 Hz Standby Rating 127-480 Volts |
||||
Engine
|
Cooling
|
Exhaust
|
Fuel
|
Alternator
|
Control Panel
|
Mounting
|
Exhaust
|
Alternator
|
Control Panels
|
Starting/Charging
|
General
|
Enclosure
|
