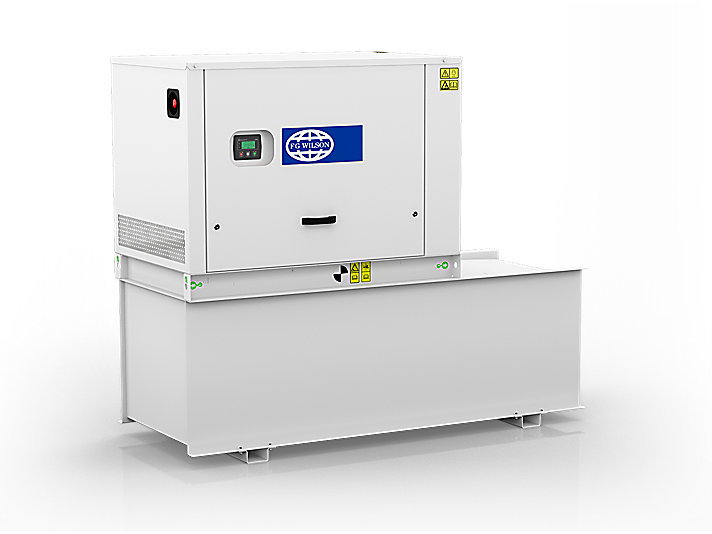

Power Diesel Generator

6.8 - 25 kVA

P14-6S

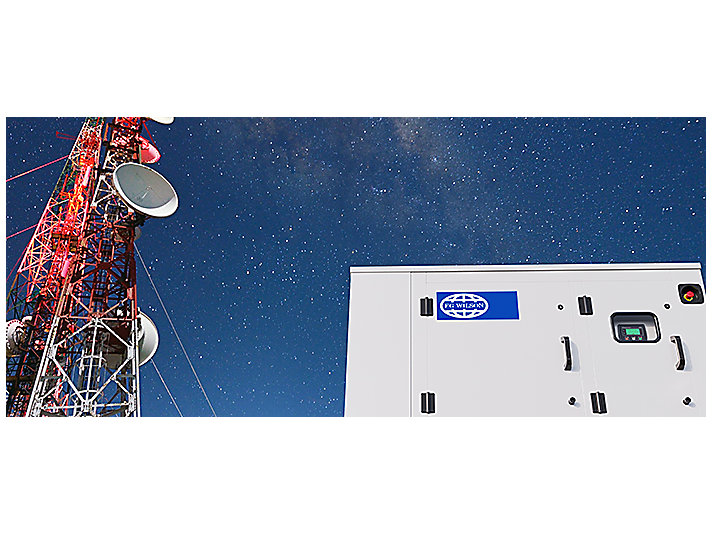

The 6.8 - 25 kVA range of generator sets is designed to power your every need. Suitable for use in diverse applications including construction, residential, retail and telecommunications, this range has been redesigned for optimum performance in some of the harshest and most remote environments. Available with a metal or polymer enclosure offering, this range is designed to withstand the test of time.

Product Benefits

Up To

2000L

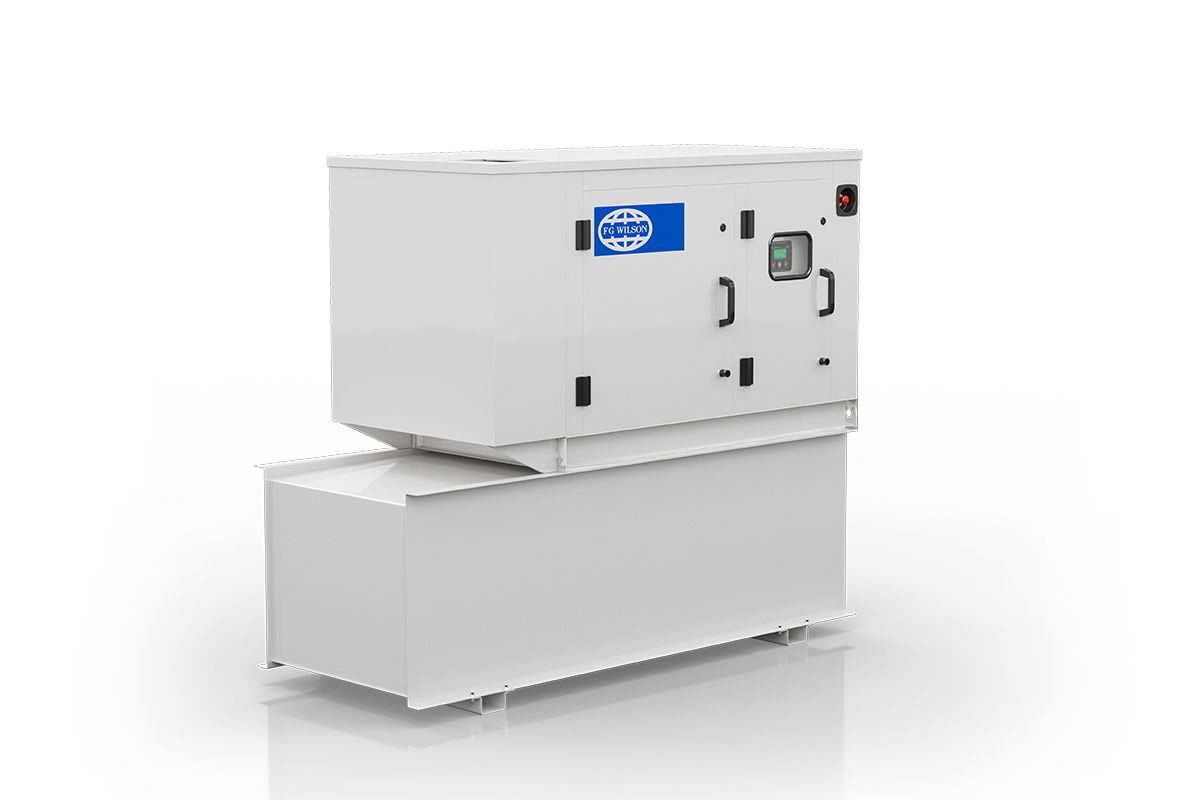

Extended Capacity Fuel Tanks

Larger fuel tanks allow for longer periods of time between refueling

As Low As

57 dBA

Super silent enclosures

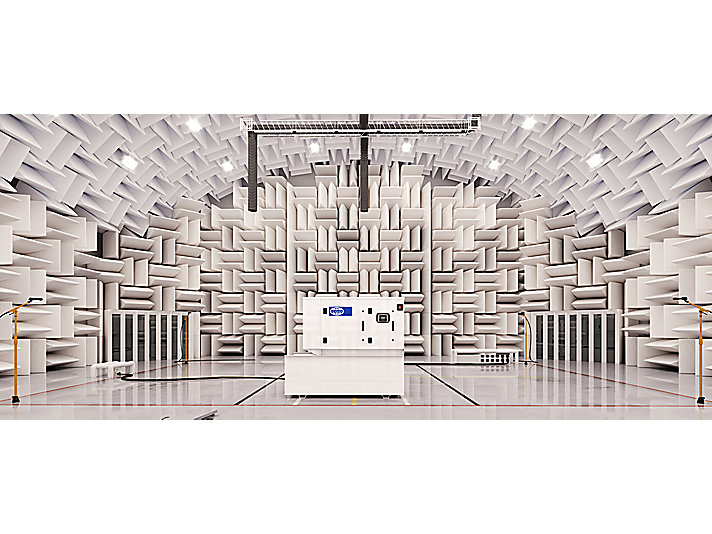

Super Silent enclosures offer excellent sound attenuation with sound as low as 57 dBA at 7m

Telematics Ready

Stay In Control

Telematics Ready

Telematics availability allows for remote access to genset controls ensuring your always in control were ever you are

Product Feature

The 6.8 - 25 kVA range of generator sets is designed to power your every need. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications including construction, residential, retail and telecommunications. The contemporary design of the polymer enclosure option redefines durability in the marketplace and further enhances this range alongside the more traditional metal enclosure. For a life without interruptions, trust FG Wilson.

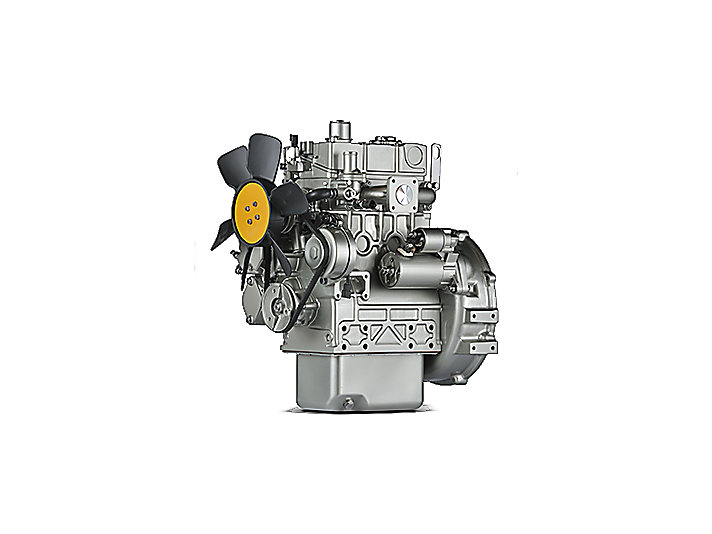

The Perkins 400 Series engines offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed and proven in the field in a wide variety of applications. Not only are they reliable but also offer low cost of ownership and excellent fuel economy.

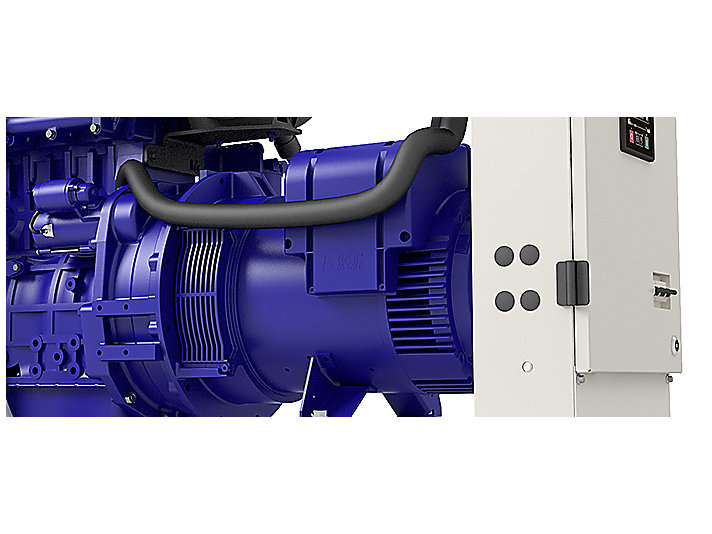

Benefiting from a choice of leading alternators, the FG Wilson FGL and Leroy Somer brand alternators are known worldwide for providing power generation expertise and solutions offering longlife products with low maintenance. Offering excellent performance and motor starting capacility they have been designed specifically to suit the FG Wilson generator set

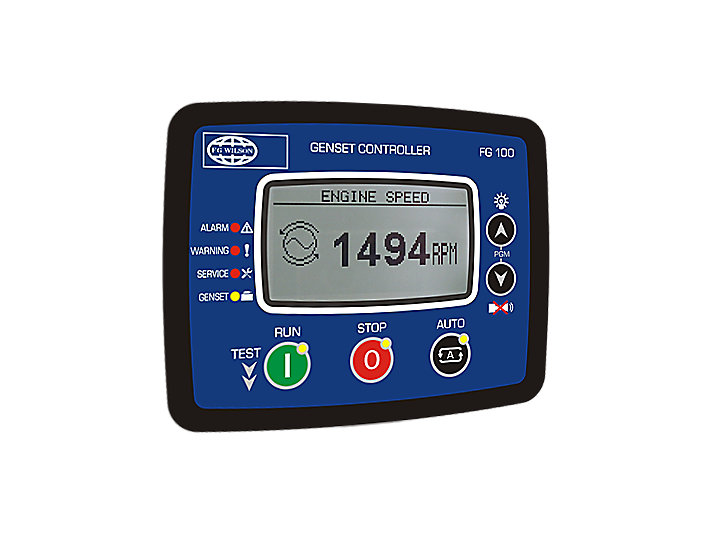

The FG100 offers simple, intuitive menu navigation and control of your generator set operations, key features such as remote monitoring allow you to control your generator set with ease. Key information is displayed via the LCD display using universally recognised symbols, eliminating the need for complex instructions or language settings. Rainbow SCADA PC software allows for remote ol of your generator set.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland - Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Designed to operate in ambient temperatures up to 55oC

Product Specifications For P14-6S

Generator Set Specifications Engine Specifications
Minimum Rating

13 kVA / 13 kW

Maximum Rating

17 kVA / 17 kW

Emissions/Fuel Strategy

EUIIIa Emissions Compliant

50 Hz Prime

13 kVA / 13 kW

Engine Model

PerkinsĀ® 404D-22G1

Bore

84 mm (3.3 in)

50 Hz Standby

14 kVA / 14 kW

60 Hz Prime

15.5 kVA / 15.5 kW

60 Hz Standby

17 kVA / 17 kW

Frequency

50 / 60 Hz

Stroke

100 mm (3.9 in)

Governor Type

Mechanical

Speed

1500 or 1800 RPM

Voltage

220-240 Volts

50 Hz Prime Rating

1500 or 1800 RPM

60 Hz Prime Rating

220-240 Volts

Displacement

2.2l (135.2 cu. in)

Compression Ratio

23.3:1

50 Hz Standby Rating

1500 or 1800 RPM

60 Hz Standby Rating

220-240 Volts

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Engine

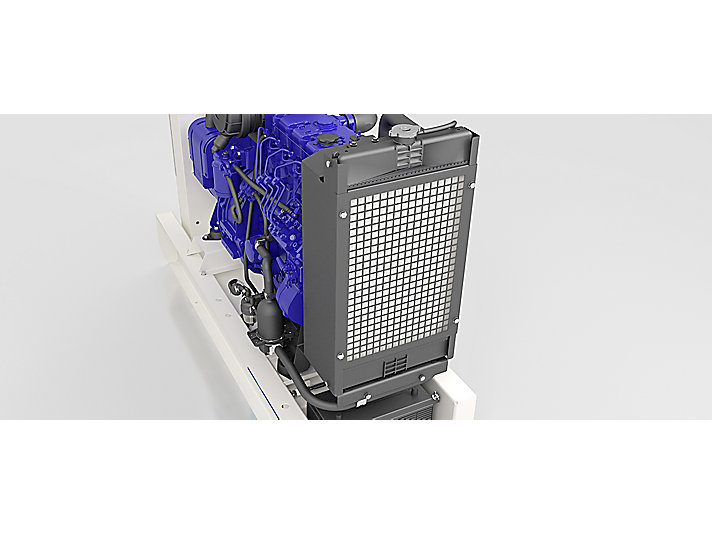

  • Package mounted radiator
  • Radiator & Cooling Fan
  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix

Exhaust

  • Exhaust flange outlet
  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank or Skidbase
  • Fuel Fittings for Local and Remote Feed

Alternator

  • FG Wilson Alternator
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • FG100

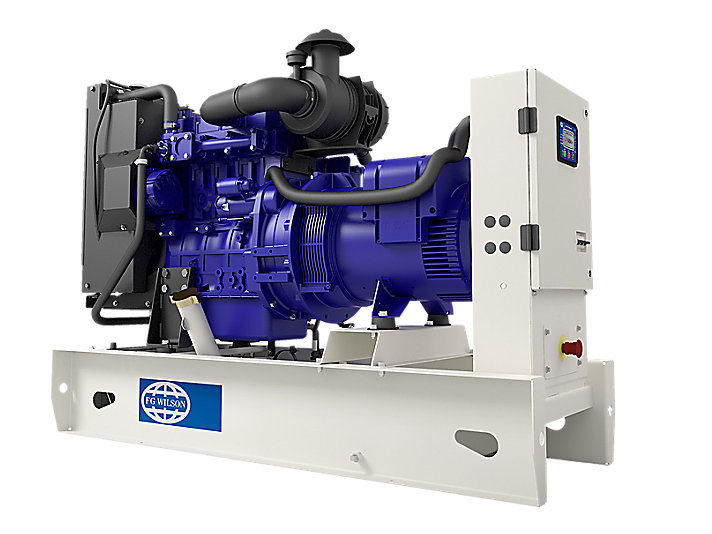

Mounting

  • Base, Formed Steel with Skid base or Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Anti-vibration mounts
  • Battery Tray and Cables

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Leroy Somer Alternator
  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry

Control Panels

  • DSE4520
  • DSE7320
  • DSE7410
  • Deep Sea DSE7420

Starting/Charging

  • Lead Acid battery (Dry)

General

  • Upgrade to Standard Set for "CE" Certification
  • EEC Declaration of Conformity
  • Narrow, Wide or Skid Base
  • Sound attenuated, steel or galvanised enclosure
  • Dual wall fuel tanks

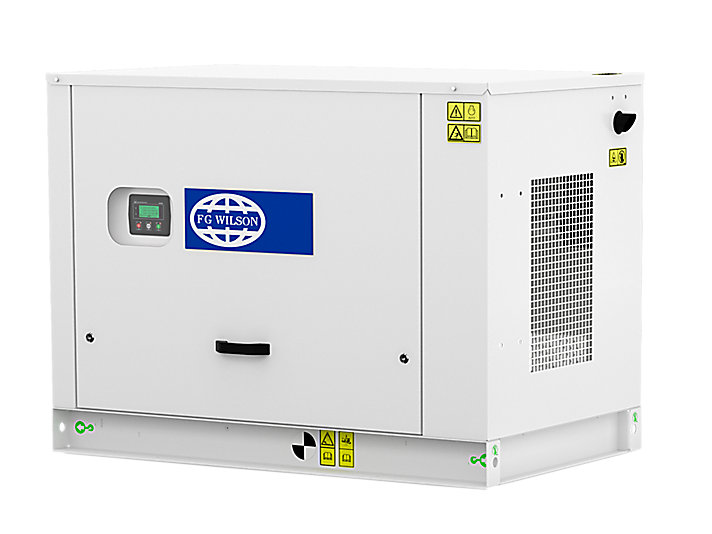

Enclosure

  • Compliance to European Community Directive 2000/14/EC
  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • Robust and highly corrosion resistant construction
