24 - 220 kVA
P50-4
Providing unrivalled quality, the 24 – 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments.
Product Benefits
Low running costs
Low running costs
Fuel Optimised
Designed to deliver optimal fuel economy
Choice of Options
Choice of Options
Enhanced
Optimising the range for a variety of diverse applications and environments
Product Feature
Our newest power range, 24 - 220 kVA, provides reliable power for today-s world with a competitive offering that delivers everything you need. Providing unrivalled quality, the 24 - 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments. Designed for todays world, trust FG Wilson.

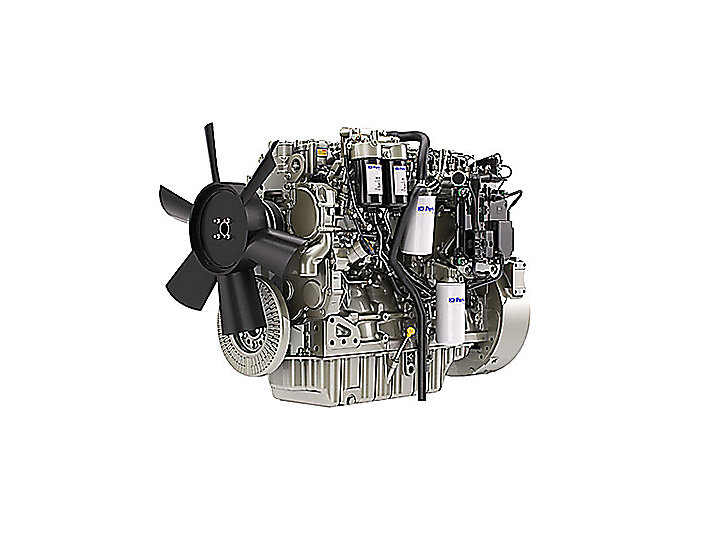

The Perkins 1100 Series engines offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed and proven in the field in a wide variety of applications. With low fuel and oil consumption, and 500 hour service intervals, the 1100 series engine will run and run.

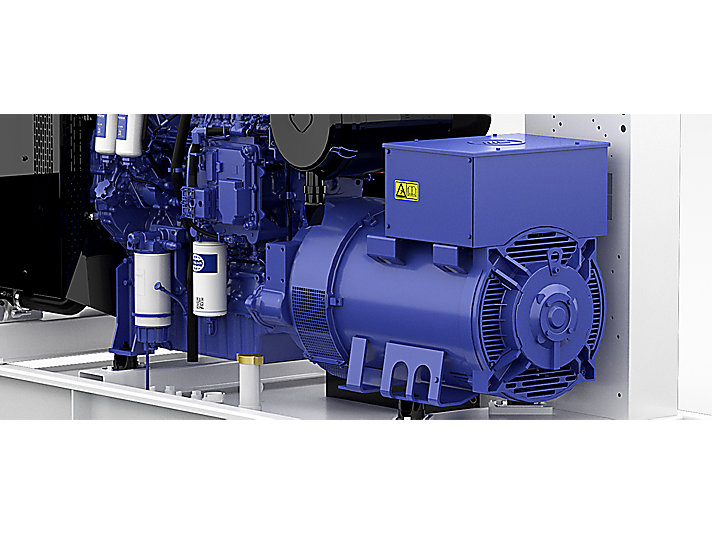

Benefiting from a choice of leading alternators, the FG Wilson FGL and Leroy Somer brand alternators are known worldwide for providing power generation expertise and solutions offering longlife products with low maintenance. Offering excellent performance and motor starting capacility they have been designed specifically to suit the FG Wilson generator set

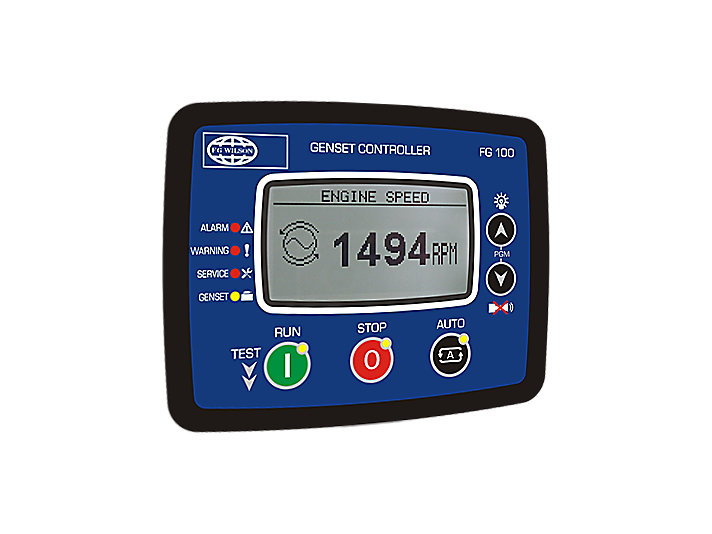

The FG Wilson FG100 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. FG Wilson FG100 control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.
Fully prototype tested with certified torsional vibration analysis available
FG Wilson manufactures product in the following locations: Northern Ireland - Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Product Specifications For P50-4
Generator Set Specifications | Engine Specifications | ||||
---|---|---|---|---|---|
Minimum Rating 45 kVA / 36 kW |
Maximum Rating 50 kVA / 40 kW |
Emissions/Fuel Strategy Fuel Optimised |
50 Hz Prime 45 kVA / 36 kW |
Engine Model PerkinsĀ® 1103C-33TG2/3 |
Bore 105 mm (4.1 in) |
50 Hz Standby 50 kVA / 40 kW |
60 Hz Prime - / - |
60 Hz Standby |
Frequency 50 Hz |
Stroke 127 mm (5 in) |
Governor Type Mechanical |
Speed 1500 RPM |
Voltage 220-415 Volts |
50 Hz Prime Rating 1500 RPM |
60 Hz Prime Rating 220-415 Volts |
Displacement 3.3l (201.4 cu. in) |
Compression Ratio 18.23:1 |
50 Hz Standby Rating 1500 RPM |
60 Hz Standby Rating 220-415 Volts |
Engine
|
Cooling
|
Exhaust
|
Fuel
|
Alternator
|
Control Panel
|
Mounting
|
Exhaust
|
Alternator
|
Control Panels
|
Starting/Charging
|
General
|
Enclosure
|
