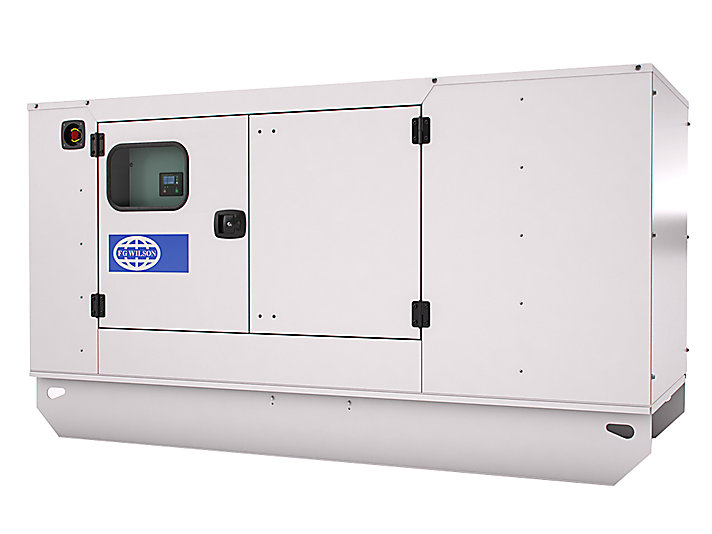

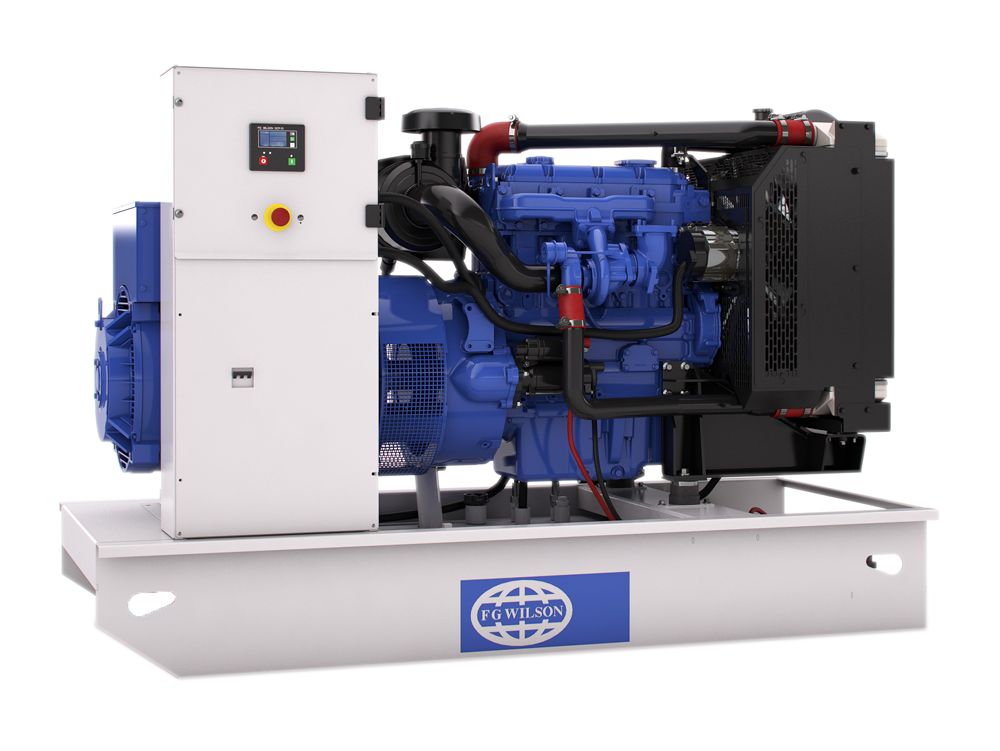

Power Diesel Generator

24 - 220 kVA

P65-6

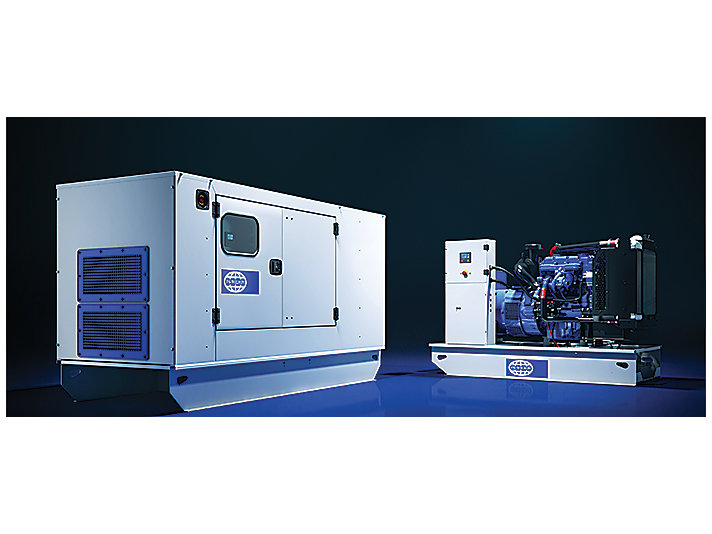

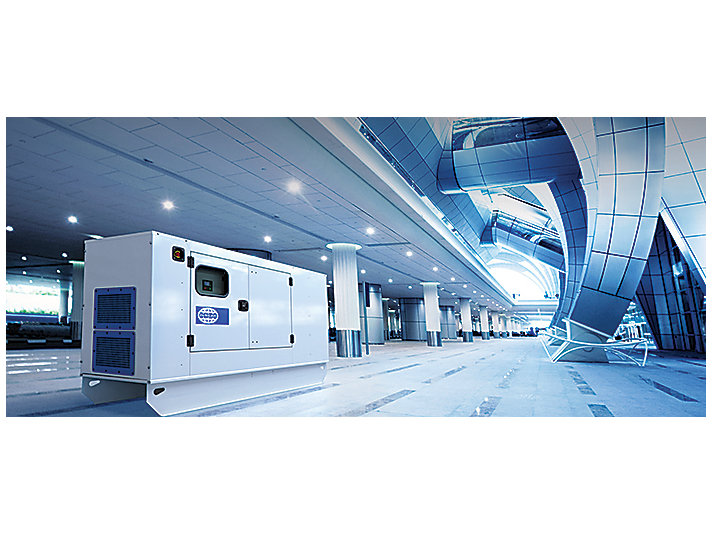

The 24 - 220 kVA range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality, the 24 - 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments. Designed with the demands of today's world in mind, this range will deliver power solutions in all sectors, from industry and retail to finance and healthcare.

Product Benefits

Low running costs

Low running costs

Fuel Optimised

Designed to deliver optimal fuel economy

Choice of Options

Choice of Options

Enhanced

Optimising the range for a variety of diverse applications and environments

Product Feature

Our newest power range, 24 - 220 kVA, provides reliable power for today-s world with a competitive offering that delivers everything you need. Providing unrivalled quality, the 24 - 220 kVA range of products offers a trusted performance with an enhanced choice of options, optimising the range for a variety of diverse applications and environments. Designed for todays world, trust FG Wilson.

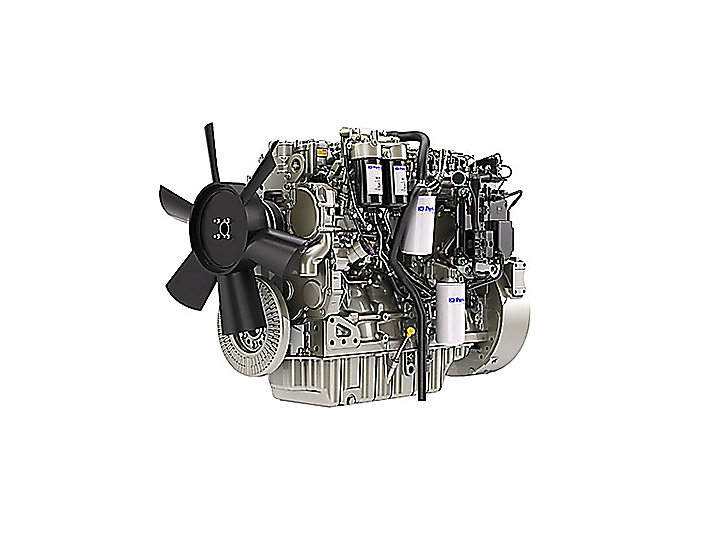

The Perkins 1100 Series engines offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed and proven in the field in a wide variety of applications. With low fuel and oil consumption, and 500 hour service intervals, the 1100 series engine will run and run.

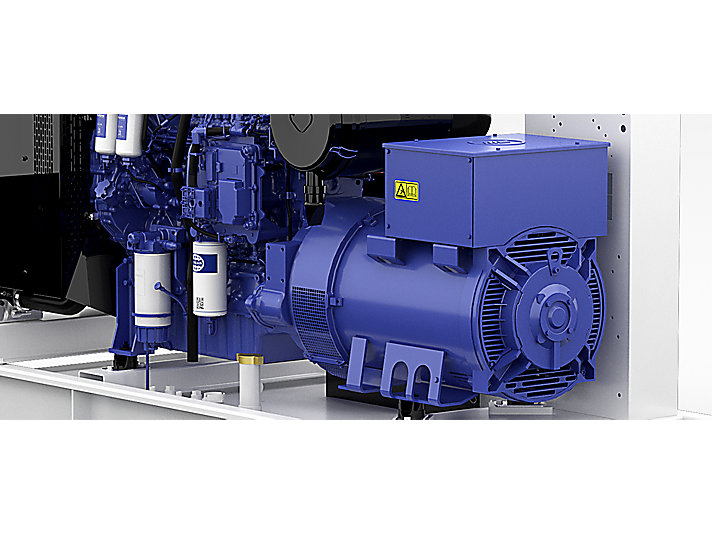

Benefiting from a choice of leading alternators, the FG Wilson FGL and Leroy Somer brand alternators are known worldwide for providing power generation expertise and solutions offering longlife products with low maintenance. Offering excellent performance and motor starting capacility they have been designed specifically to suit the FG Wilson generator set

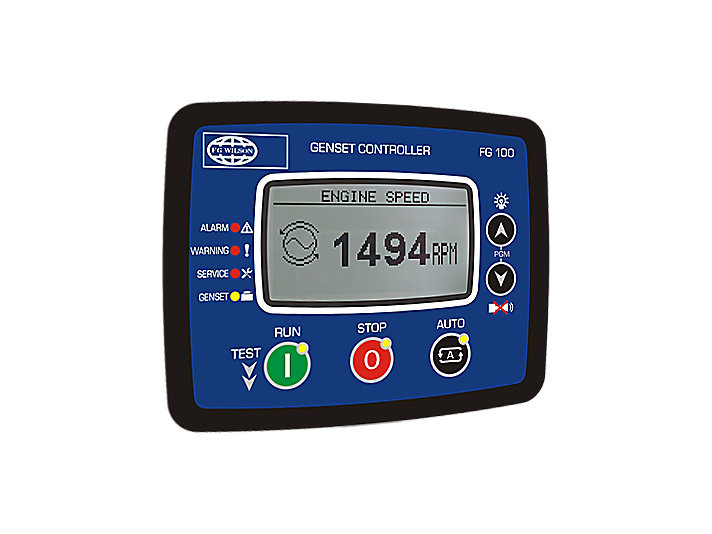

The FG Wilson FG100 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. FG Wilson FG100 control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.

Fully prototype tested with certified torsional vibration analysis available

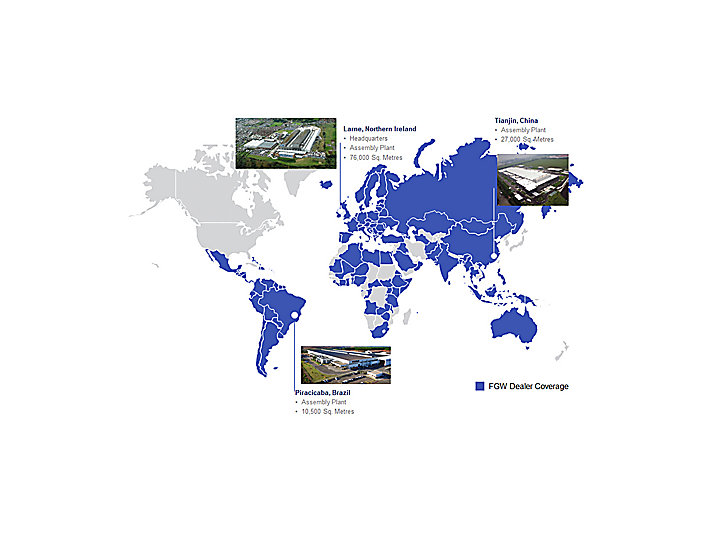

FG Wilson manufactures product in the following locations: Northern Ireland - Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Product Specifications For P65-6

Generator Set Specifications Engine Specifications
Minimum Rating

60 kVA / 48 kW

Maximum Rating

65 kVA / 52 kW

Emissions/Fuel Strategy

EU Stage IIIA emissions compliant.

50 Hz Prime

60 kVA / 48 kW

Engine Model

PerkinsĀ® 1104D-44TG2/3

Bore

105 mm (4.1 in)

50 Hz Standby

65 kVA / 52 kW

60 Hz Prime

- / -

60 Hz Standby

Frequency

50 Hz

Stroke

127 mm (5 in)

Governor Type

Mechanical

Speed

1500 RPM

Voltage

220-415 Volts

50 Hz Prime Rating

1500 RPM

60 Hz Prime Rating

220-415 Volts

Displacement

4.4l (268.5 cu. in)

Compression Ratio

18.23:1

50 Hz Standby Rating

1500 RPM

60 Hz Standby Rating

220-415 Volts

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Radiator & Cooling Fan
  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix

Exhaust

  • Exhaust flange outlet
  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank
  • Fuel Fittings for Local and Remote Feed

Alternator

  • FG Wilson FGL Alternator
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • DCP-10

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Anti-vibration mounts
  • Battery Tray and Cables

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Leroy Somer Alternator
  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry

Control Panels

  • PowerWizard 1.1 Control Panel (PWT1.1)
  • PowerWizard 1.1+ Control Panel (PWT1.1+)
  • PowerWizard 2.1 Control Panel (PWT2.1)

Starting/Charging

  • Lead Acid battery (Dry)

General

  • Upgrade to Standard Set for "CE" Certification
  • EEC Declaration of Conformity
  • Narrow, Wide or Skid Base
  • Sound attenuated, steel or galvanised enclosure
  • Dual wall fuel tanks

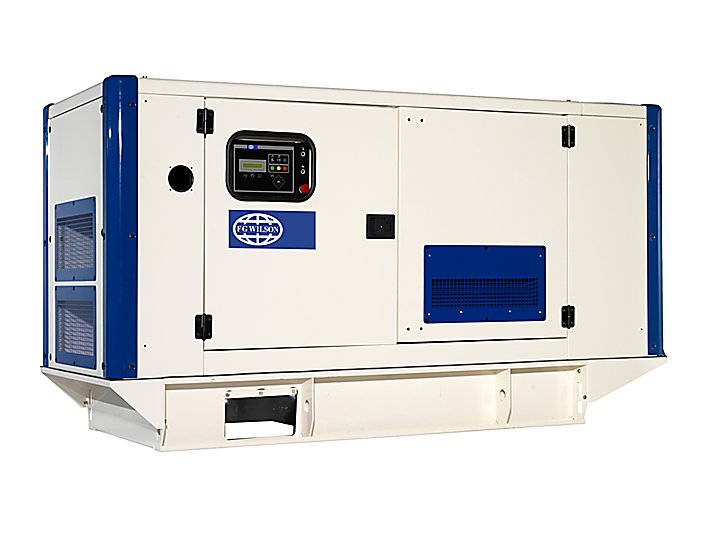

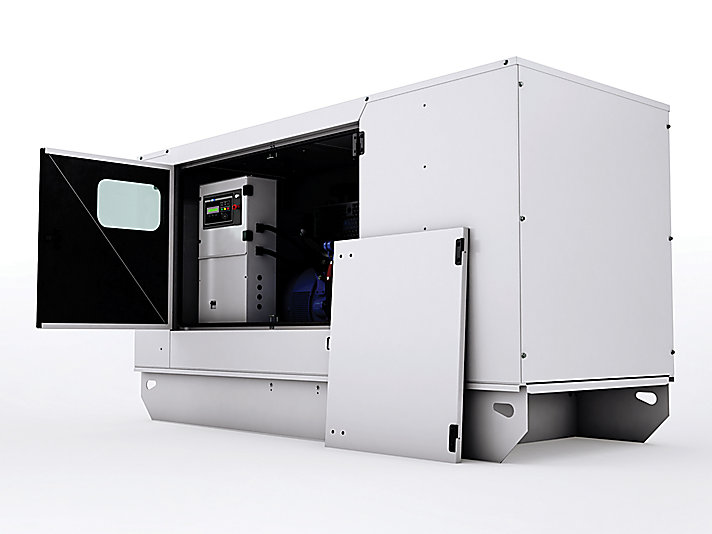

Enclosure

  • Compliance to European Community Directive 2000/14/EC
  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • Robust and highly corrosion resistant construction
