Power Diesel Generator

730 - 2500 kVA

P1101-1

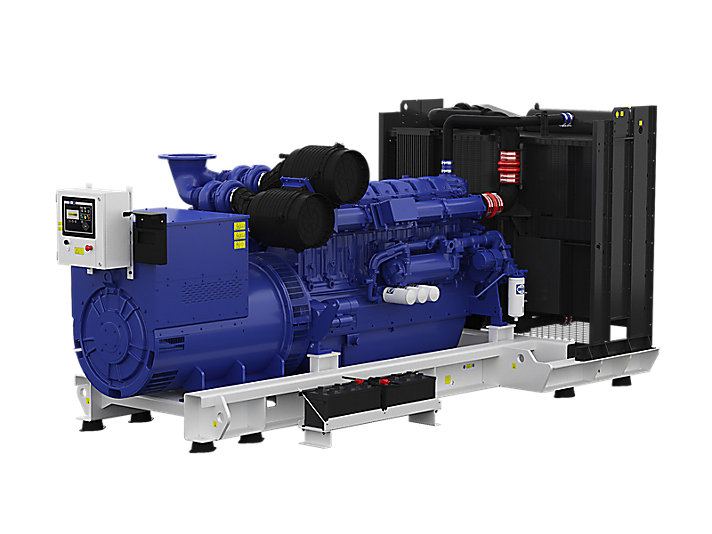

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Product Benefits

Product Feature

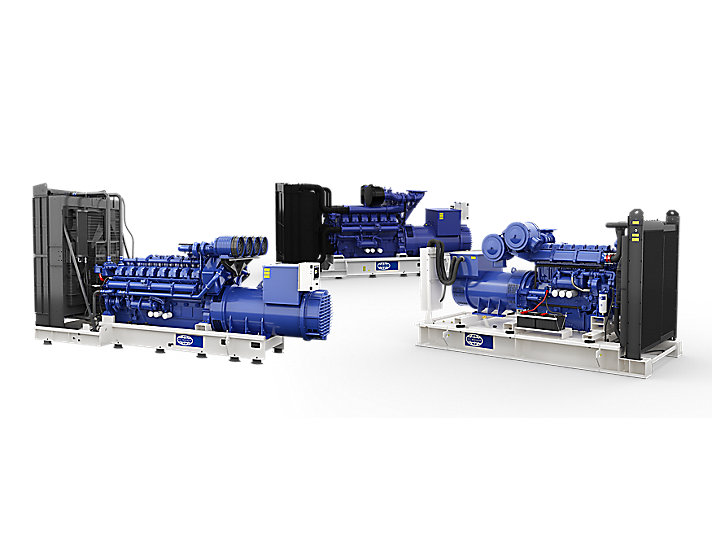

Our Large Product Range of generator set models is available from 800 - 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need.

The 8 cylinder Perkins 4008 range gives you the versatility you need in today's power generation market. This engine has proven reliability in prime and standby installations in all of the key sectors, such as manufacturing facilities, hospitals, and data centres. The 4008 engines have exceptional power-to-weight ratios and compact designs, making them simple to transport and install.

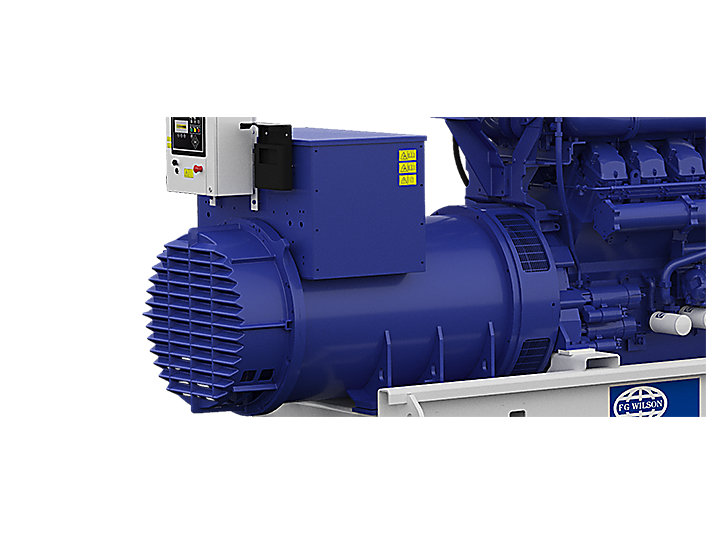

Supported by the FG Wilson & Leroy Somer alternator, known worldwide for providing industry leading power generation and solutions, offering longlife products with low maintenance

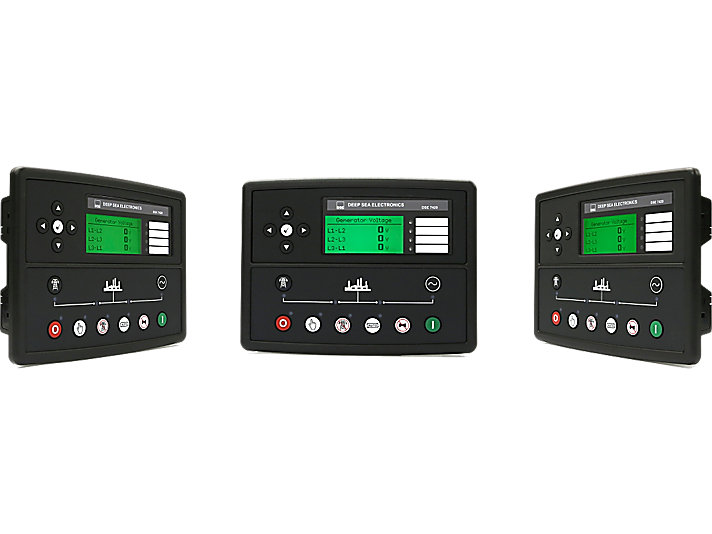

The DSE7410 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. Deep Sea control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.

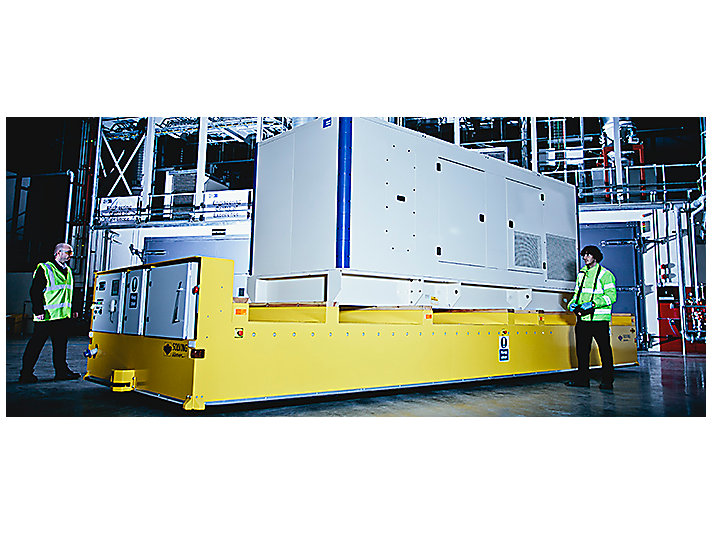

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Product Specifications For P1101-1

Generator Set Specifications Engine Specifications
Minimum Rating

1000 kVA / 800 kW

Maximum Rating

1100 0kVA / 880.0kW

Emissions/Fuel Strategy

Fuel Optimised

50 Hz Prime

Engine Model

Perkins® 4008TAG2

Bore

160 mm (6.3 in)

50 Hz Standby

60 Hz Prime

1000 kVA / 800 kW

60 Hz Standby

1100 0kVA / 880.0kW

Frequency

60 Hz

Stroke

190 mm (7.5 in)

Governor Type

Electronic

Speed

1800 RPM

Voltage

220-480 Volts

50 Hz Prime Rating

1800 RPM

60 Hz Prime Rating

220-480 Volts

Displacement

30.6l (1864.9 cu. in)

Compression Ratio

13.6:1

50 Hz Standby Rating

1800 RPM

60 Hz Standby Rating

220-480 Volts

Engine

  • Air Cleaner Engine filled with lubrication oil Low Coolant Temperature Shutdown Perkins 4000 Series 8 cylinder engine Electronic governor Engine mounted fuel/water separator Lube drain valve

Cooling

  • Package mounted radiator
  • Coolant Drain Valve
  • Engine mounted battery charging alternator
  • Cooling System filled with Coolant mix
  • Charge air cooled

Exhaust

  • Industrial silencer

Fuel

  • Fuel Cooler

Alternator

  • Leroy Somer
  • AREP Excitation
  • IP23 Protection

Control Panel

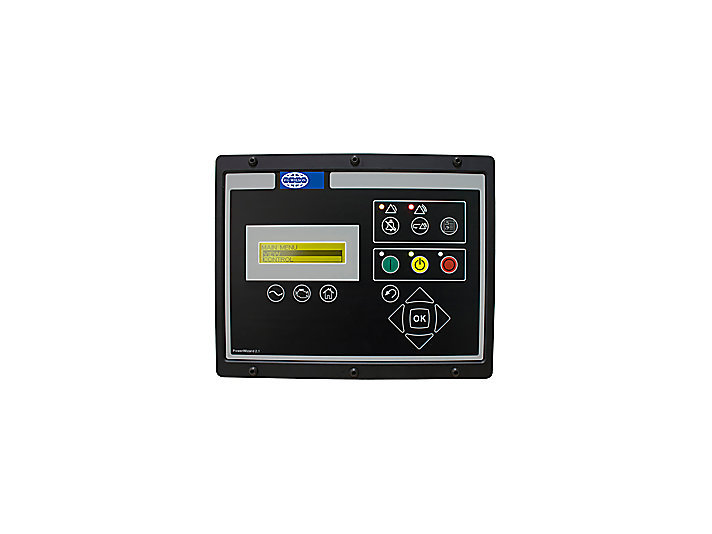

  • PowerWizard 1.1+

Mounting

  • Rigid steel base frame
  • Lifting points on base frame

Exhaust

  • Industrial, Residential, Critical Silencers
  • Catalytic converters
  • Heat Exhangers
  • Special spark arrestor silencers/certification

Alternator

  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry
  • Increased alternator ingress protection
  • HV alternators

Control Panels

  • PowerWizard 2.1
  • easYgen-2500, 3200, 3500
  • ComAp
  • Deep Sea
  • Customer tailored PLC System
  • Remote monitoring
  • Increased Control Panel Ingress Protection
  • Stand alone ATI transfer panel

Starting/Charging

  • Lead Acid battery
  • Dual and air starting systems

General

  • Upgrade to Standard Set for "CE" Certification
  • Sound attenuated enclosures
  • Spring, Seismic anti-vibration mounts
  • Customer witness test
  • Remote cooling
  • Coolant heater
  • 4-Pole circuit breaker
  • Motorised circuit breaker
  • LV and HV switchgear
