350 - 938 kVA
P450-2

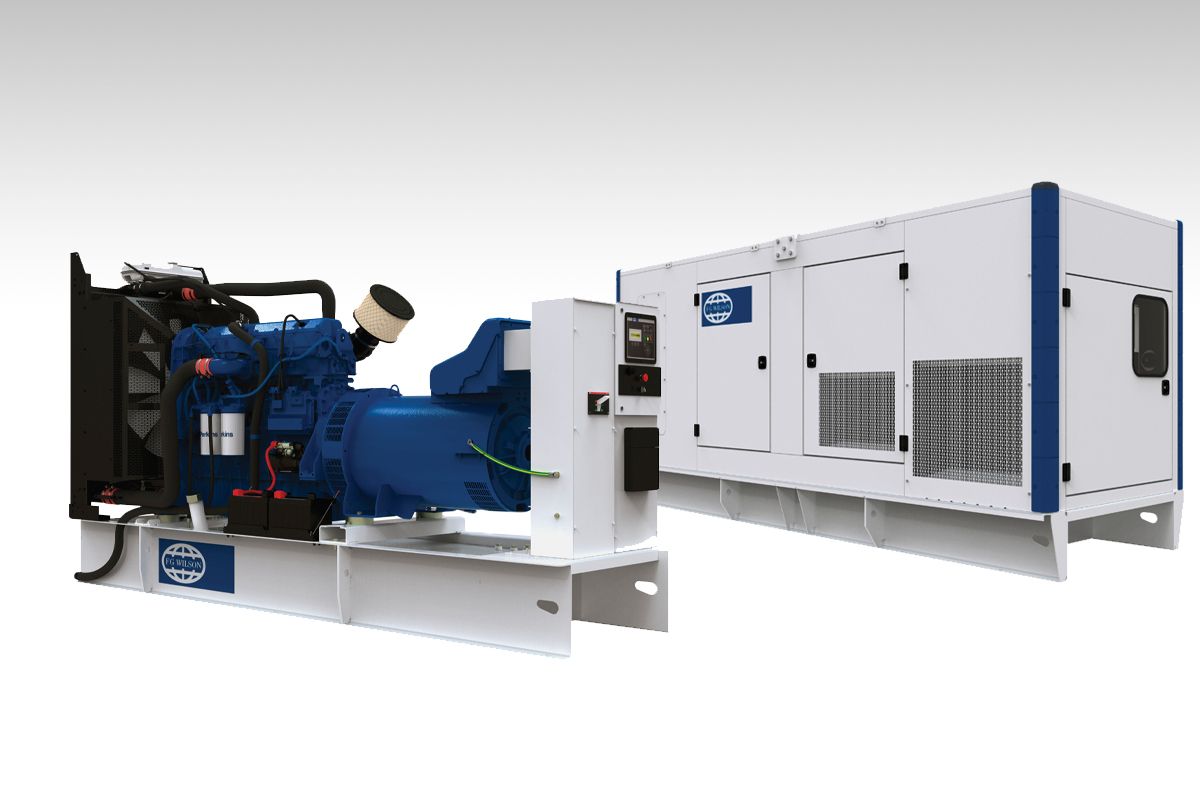

The new 350 - 750 kVA industry leading power range is the result of a continued focus on performance, durability and serviceability combined with the most advanced production methods to deliver power you can trust.
Product Feature

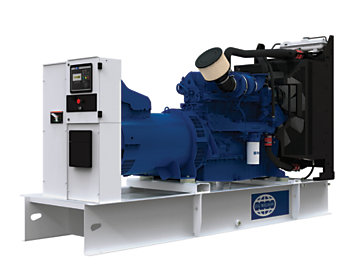

The 350 - 938 kVA range from FG Wilson is designed by our expert engineers to deliver power you can trust. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. Expert Design... Trusted Power
Benefiting from a choice of FG Wilson branded and Leroy Somer alternators across the range offering the excellent performance and reliability you expect from FG Wilson.

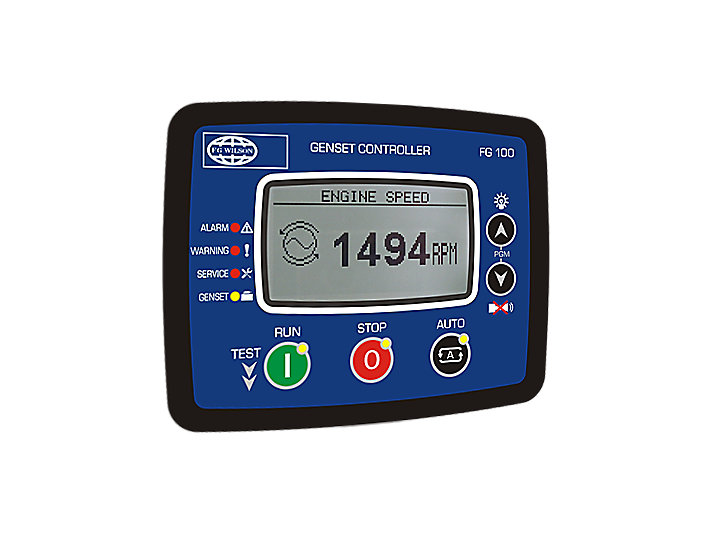

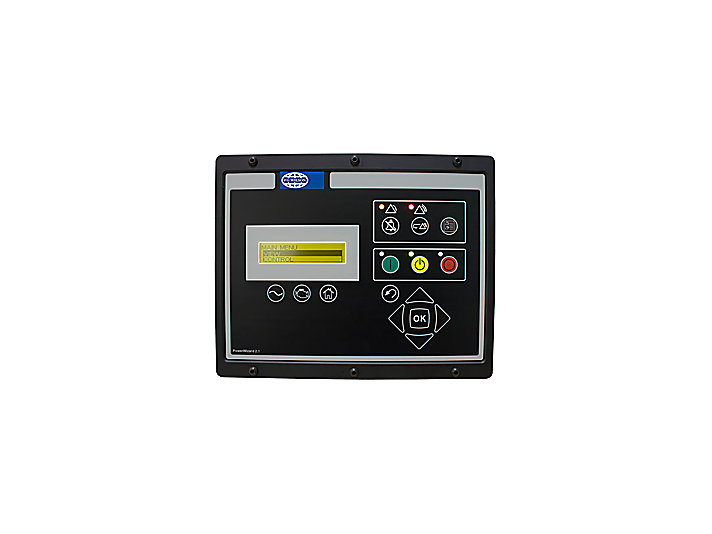

The FG Wilson FG100 range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our FG100 range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

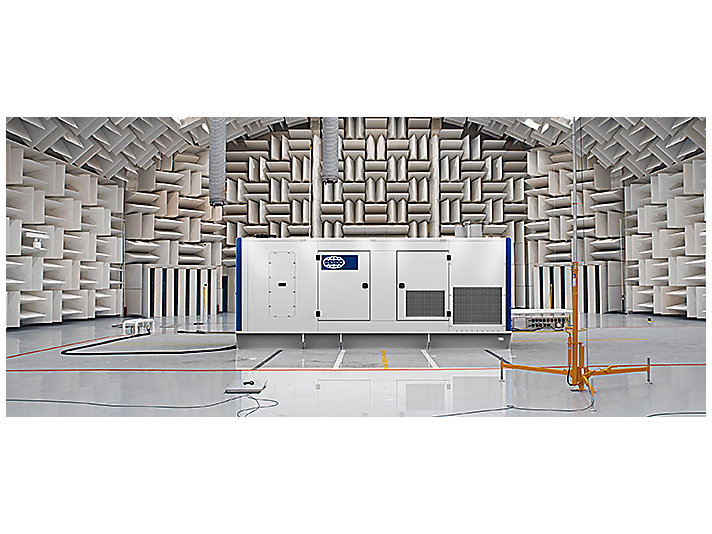

Fully prototype tested with certified torsional vibration analysis available
FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Product Specifications For P450-2
| Generator Set Specifications | Engine Specifications | ||||
|---|---|---|---|---|---|
|
Minimum Rating 400 kVA / 320 kW |
Maximum Rating 450 kVA / 360 kW |
Emissions/Fuel Strategy EUIIIa Emissions Compliant |
50 Hz Prime 400 kVA / 320 kW |

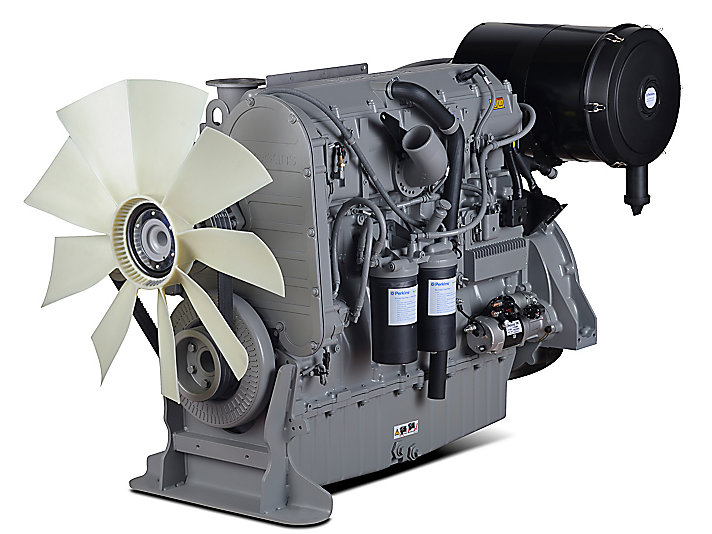

Engine Model Perkins®2206D-E13TAG3A |
Bore 130 mm (5.1 in) |
|
50 Hz Standby 450 kVA / 360 kW |
60 Hz Prime |
60 Hz Standby |
Frequency 50 Hz |
Stroke 157 mm (6.2 in) |
Governor Type Electronic |
|
Speed 1500 RPM |
Voltage 220-415 Volts |
50 Hz Prime Rating 1500 RPM |
60 Hz Prime Rating 220-415 Volts |
Displacement 12.5l (762.8 cu. in) |
Compression Ratio 15.8:1 |
|
50 Hz Standby Rating 1500 RPM |
60 Hz Standby Rating 220-415 Volts |
||||
Engine
|
Cooling
|
Exhaust
|
Fuel
|
Alternator
|
Control Panel
|
Mounting
|
Exhaust
|
Alternator
|
Control Panels
|
Starting/Charging
|
General
|

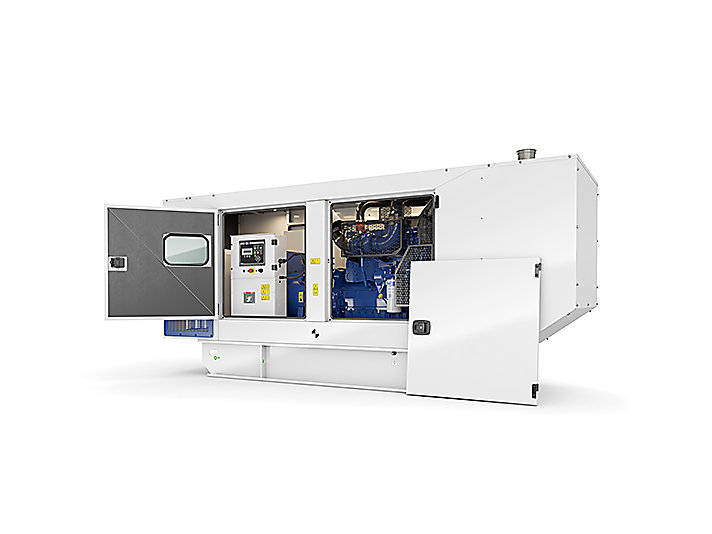

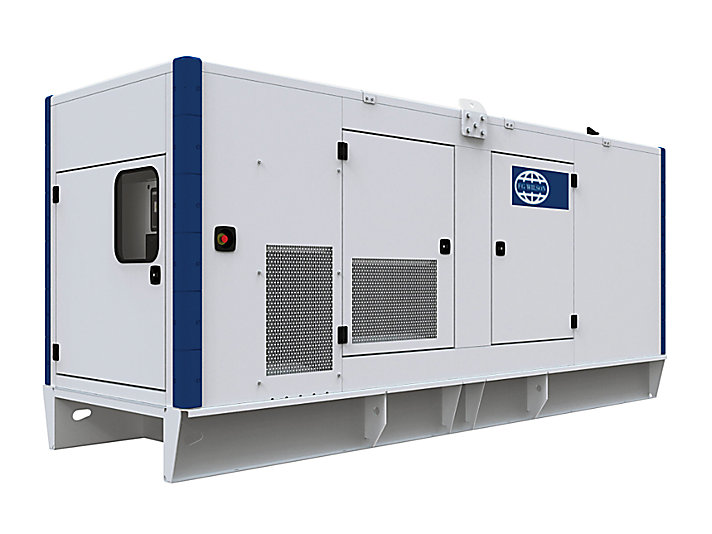

Enclosure
|
Product Gallery
